OEM:
BS3300 KNORR BREMSECojali reference:

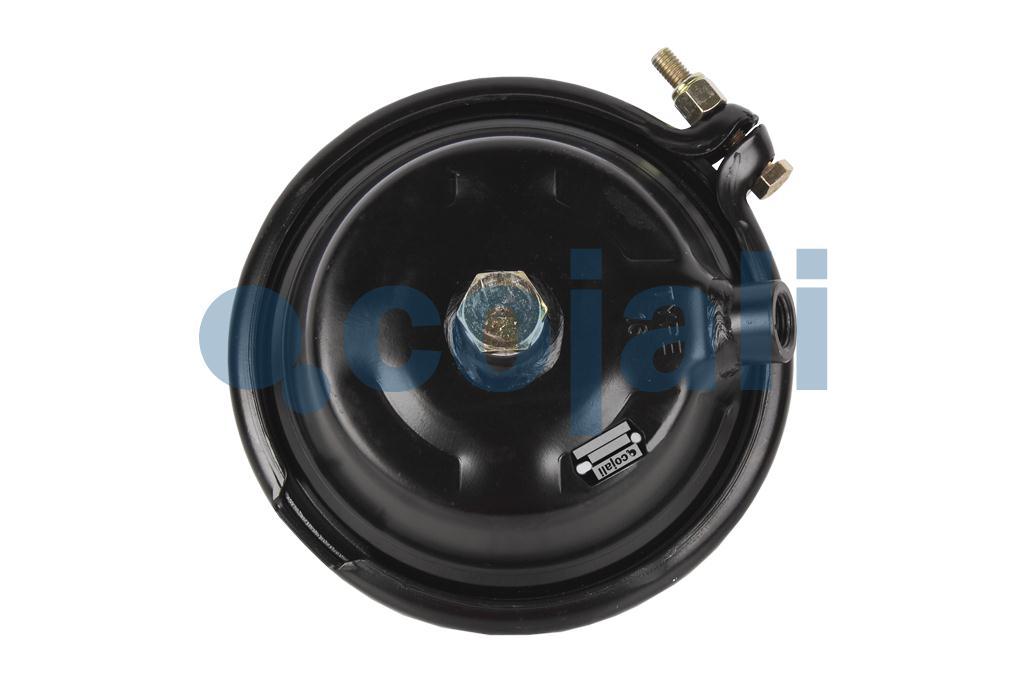

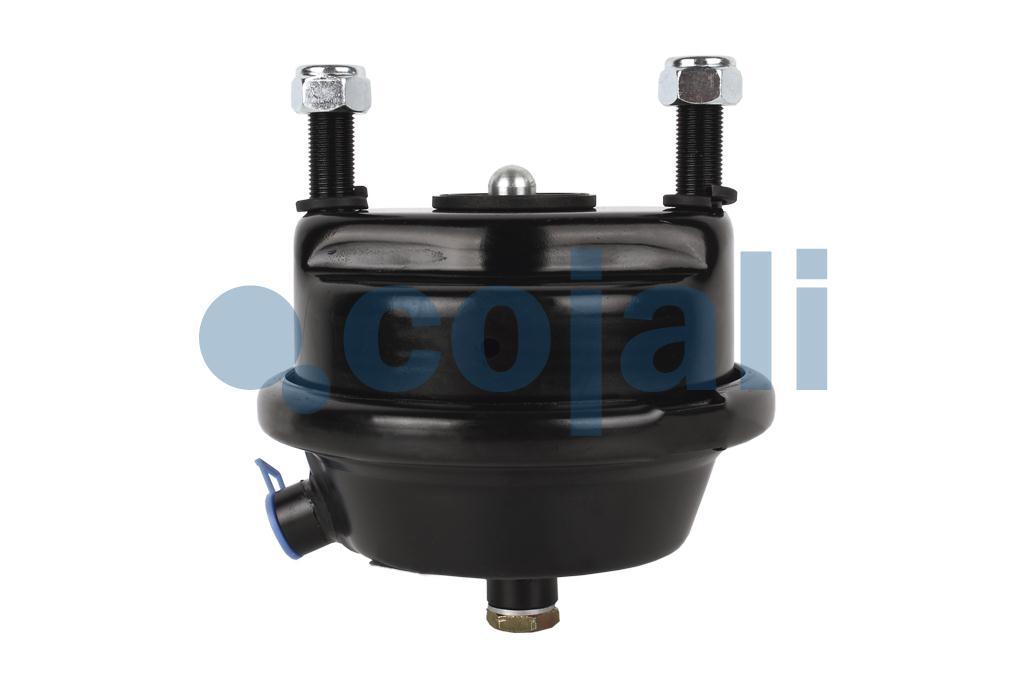

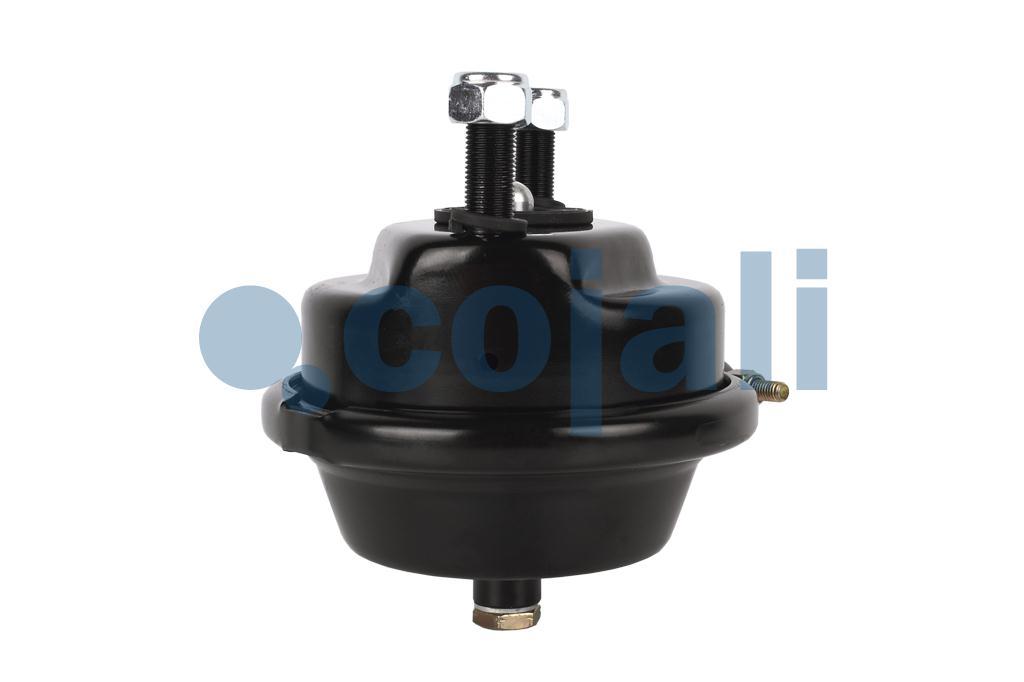

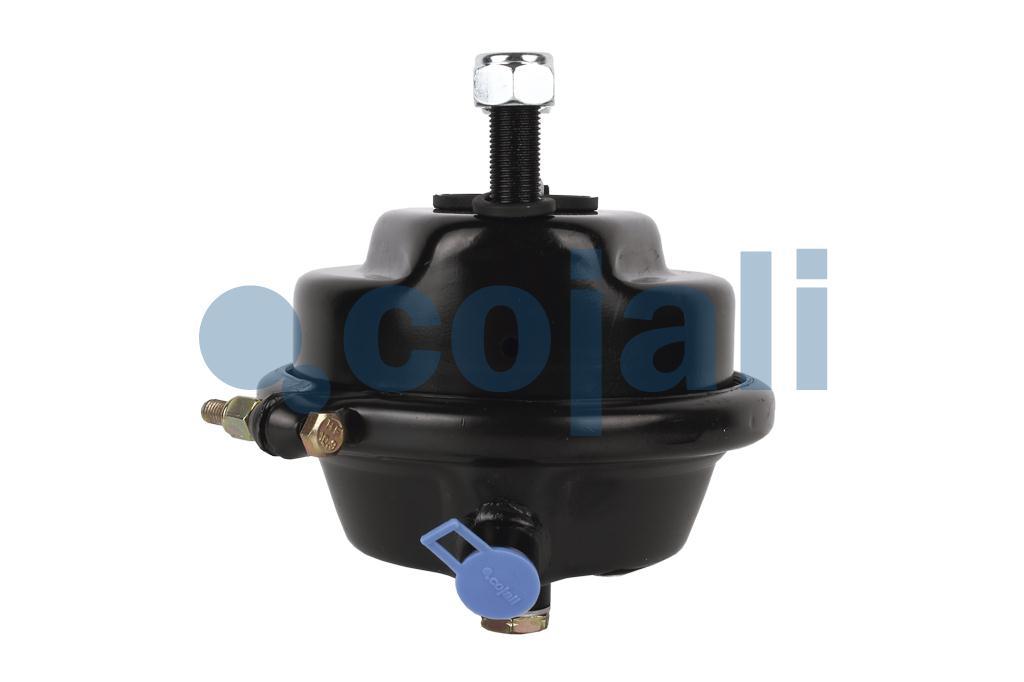

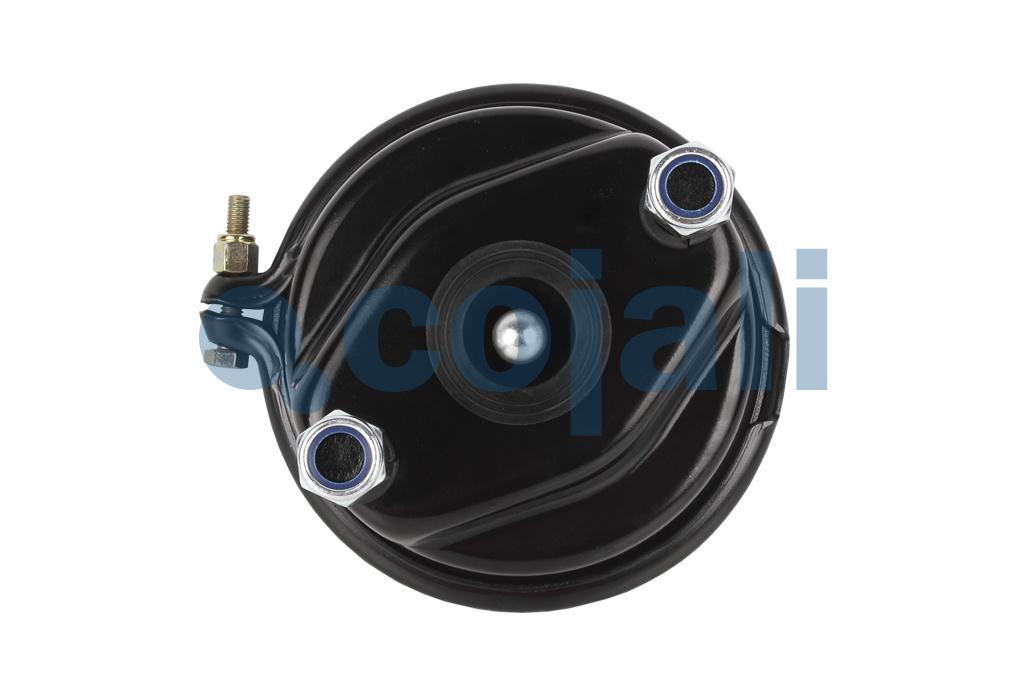

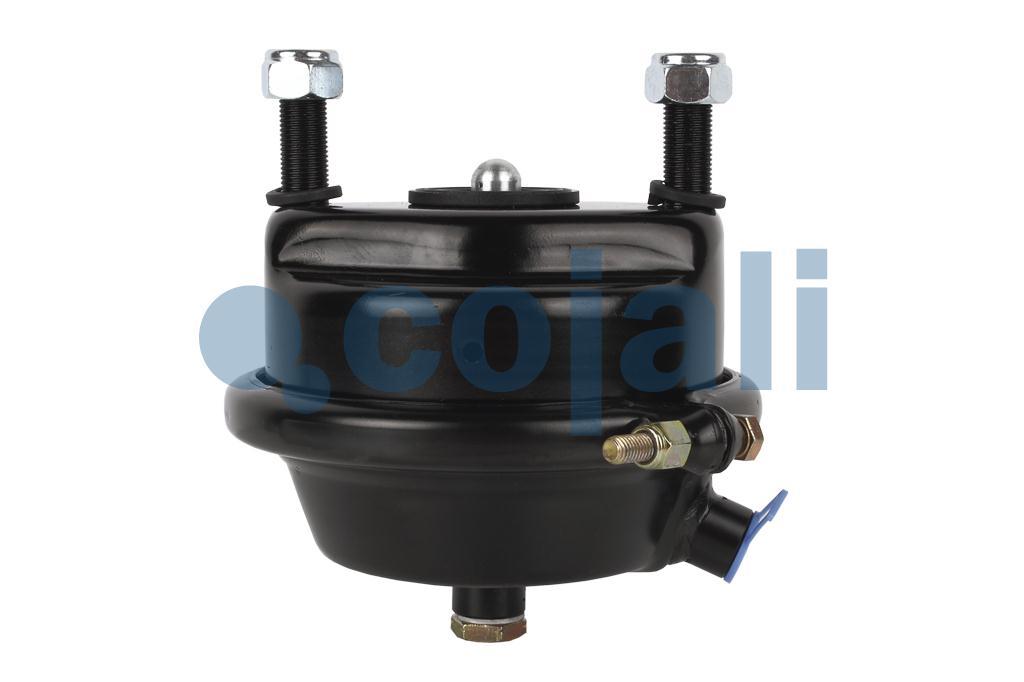

2351300Unit responsible for producing the braking force by means of compressed air or spring, ensuring an efficient and safe response of the braking system.
| Anchorage bolt length | 1 11/16 inch |
| Anchorage bolt thread | M16x1,5 |
| Connections | M16x1,5 |
| Distance between anchorage bolts | 4 3/4 inch |
| Flange rotation angle | 15° |
| Parking chamber output force | 7600 N (a 25/32 inch, 101.53 psi) |
| Rod diameter | 5/8 inch |
| Rod length | 19/32 inch |
| Stroke | 2 9/16 inch |
| Type | T-16 |
| Weight | 104.76 oz |
| Manufacturer | OEM Reference | Main OEM |
|---|---|---|
| KNORR BREMSE | BS3300 |
