OEM:
ZB4593 KNORR BREMSECojali reference:

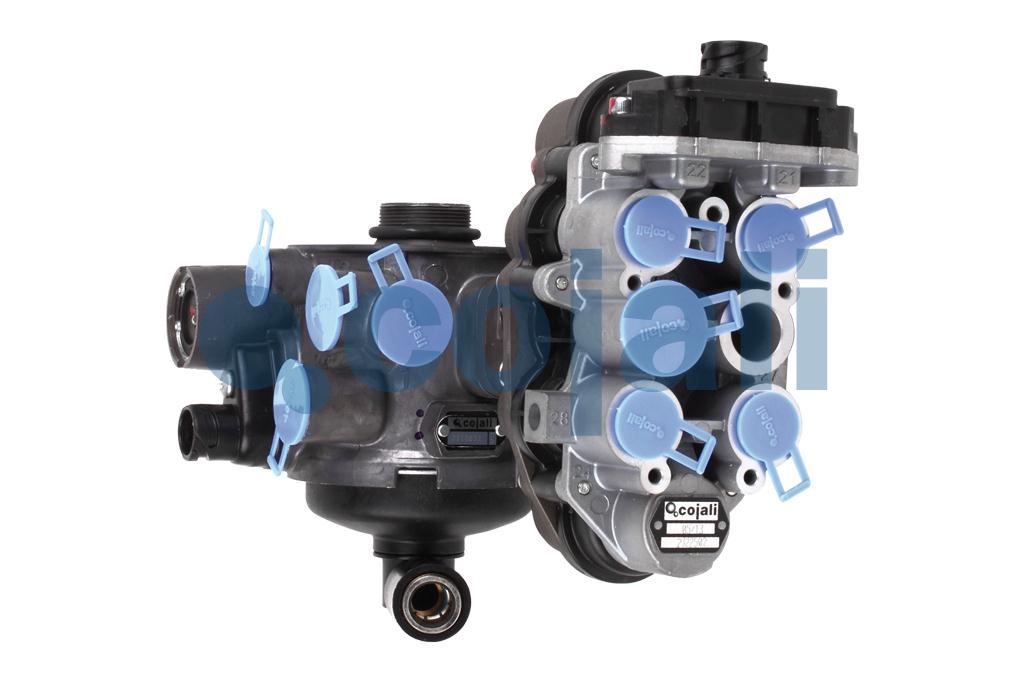

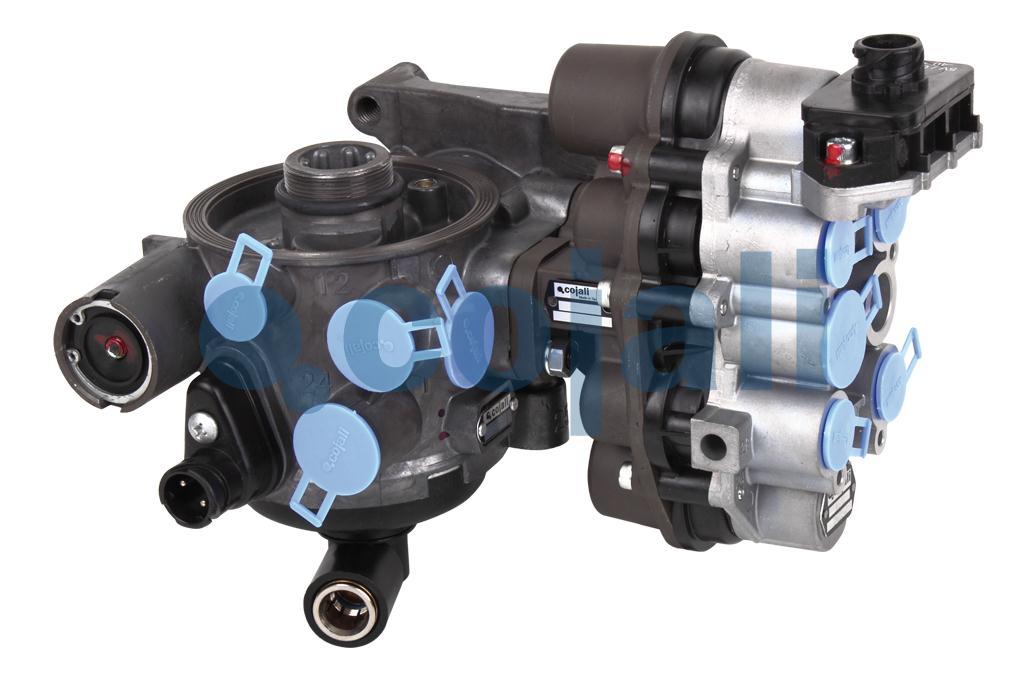

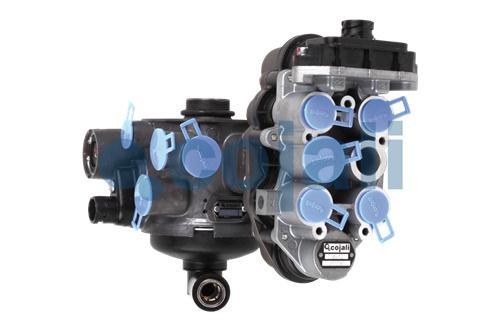

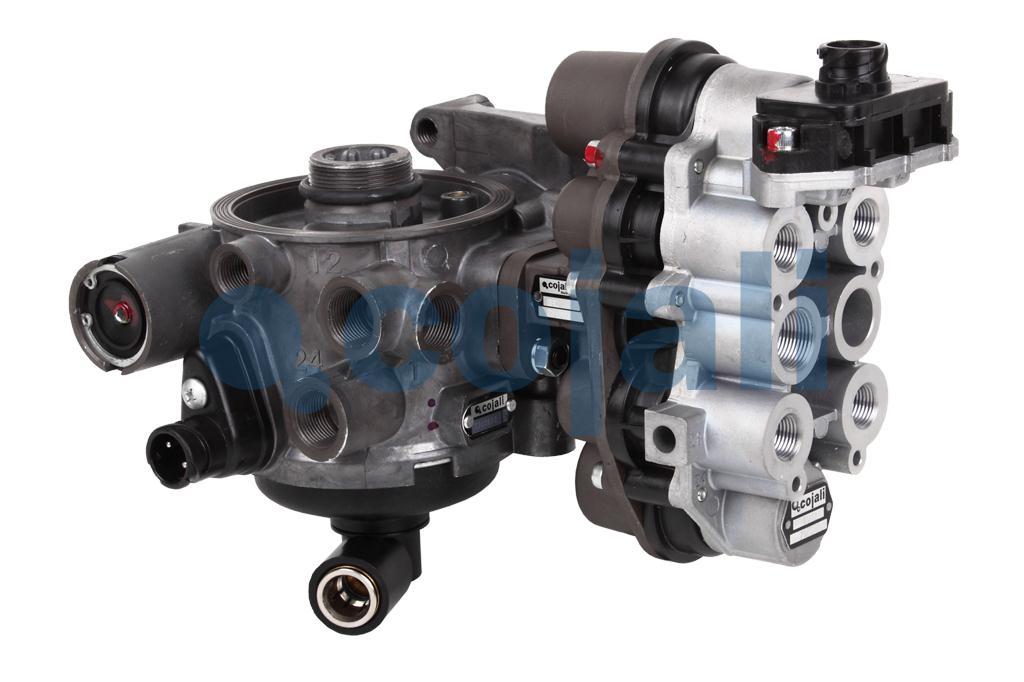

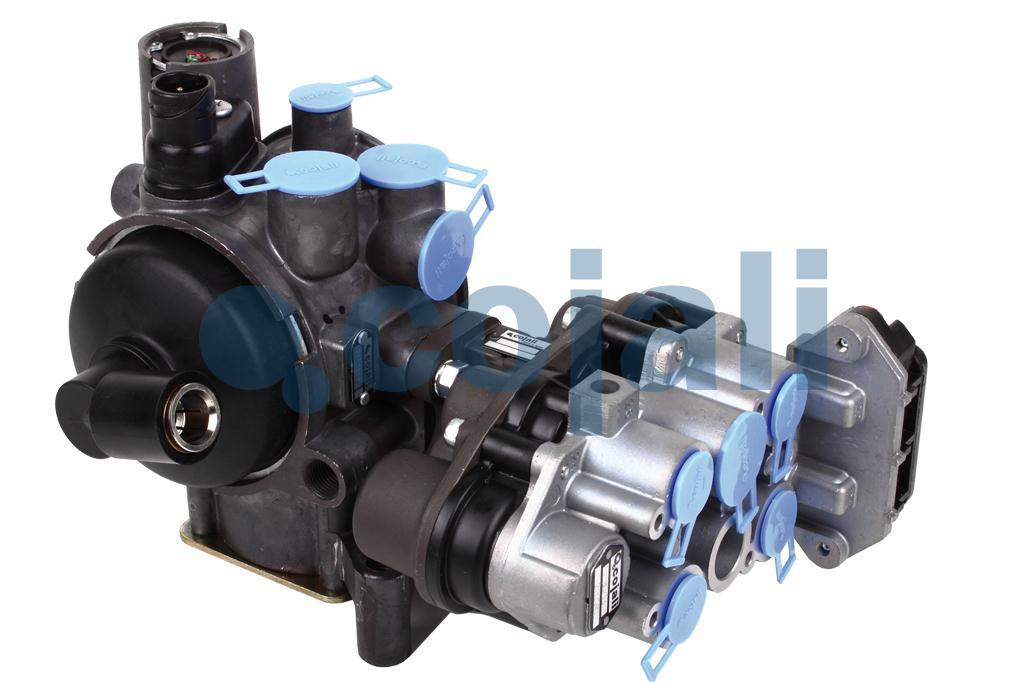

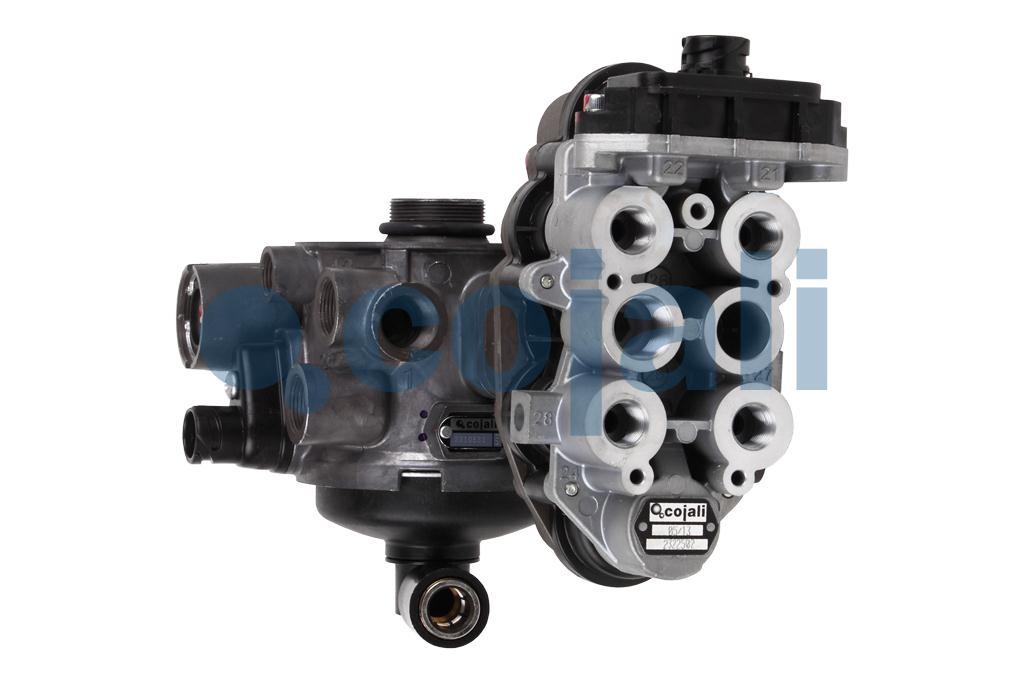

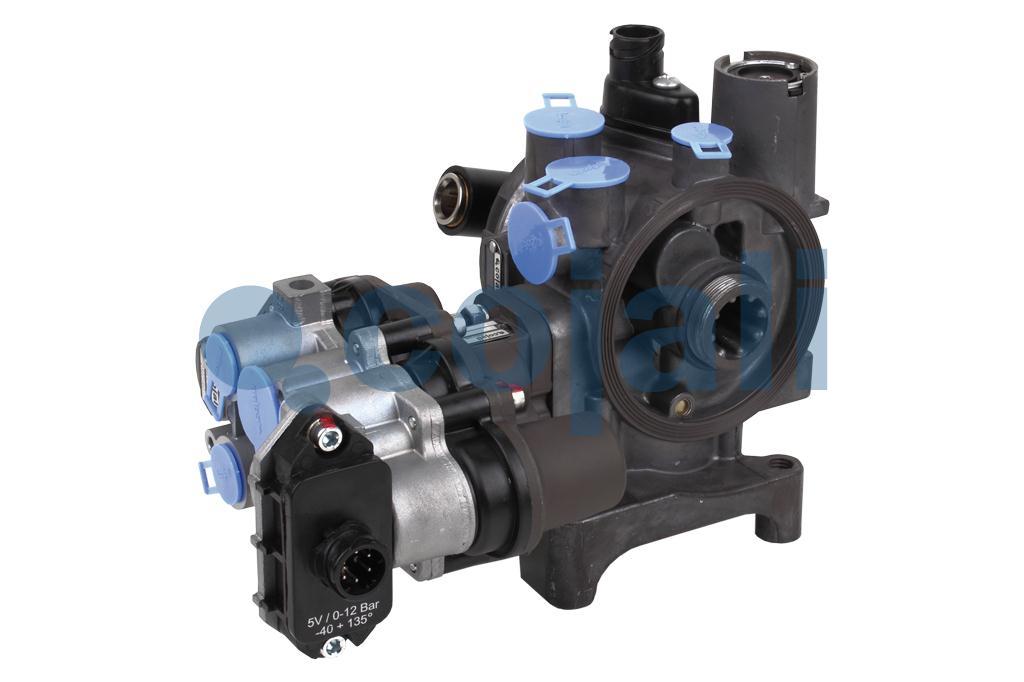

2310905Component responsible for compressed air management (drying and filtering) and its distribution to the several tanks of the vehicle, guaranteeing a clean and constant supply.
| Cartridge connection | M39x1,5 |
| Circuit 1 opening pressure | 108.78 psi (by-pass) |
| Circuit 2 opening pressure | 108.78 psi (by-pass) |
| Circuit 3 opening pressure | 116.03 psi |
| Circuit limitation pressure 3 | 123.28 psi |
| Circuit limitation pressure 4 | 123.28 psi |
| Cojali reference (circuit protection) | 2322502 |
| Cojali reference (dryer) | 2310532 |
| Connection 1 (circuit protection) | M16x1,5 |
| Connection 1 (dryer) | M22x1,5 |
| Connection 12 (dryer) | M22x1,5 |
| Connection 21 (circuit protection) | M16x1,5 |
| Connection 21 (dryer) | M16x1,5 |
| Connection 22 (circuit protection) | M16x1,5 |
| Connection 23 (circuit protection) | M16x1,5 |
| Connection 23 (dryer) | M16x1,5 |
| Connection 24 (circuit protection) | M16x1,5 |
| Connection 24 (dryer) | M22x1,5 |
| Connection 25 (dryer) | M16x1,5 |
| Connection 26 (circuit protection) | M22x1,5 |
| Cut-out pressure | 152.29 psi |
| Electrical connection (pressure sensor) | Bayoneta DIN 72585 A1-6 |
| Heater (type) | Bayoneta DIN 72585 A1-2 |
| OEM reference (circuit protection) | AE4516 |
| OEM reference (dryer) | LA 8125 |
| Safety device | Sí |
| Silent | No |
| Voltage (heater) | 24 V |
| Voltage (pressure sensor) | 5V |
| Weight | 178.82 oz |
| Vehicle type | Brand | Series | Type | Model | Engine type |
|---|---|---|---|---|---|
| TRUCK | IVECO | --------- | --------- | --------- | --------- |
| BUS | IRISBUS | --------- | --------- | --------- | --------- |
| Manufacturer | OEM Reference | Main OEM |
|---|---|---|
| IVECO | 41285081 | - |
| IVECO | 41211392 | - |
| IVECO | 41211262 | - |
| KNORR BREMSE | ZB4593 | |
| KNORR BREMSE | K012246N00 | - |
| KNORR BREMSE | K001455 | - |
| KNORR BREMSE | K012246 | - |
| Cojali Reference | Name | OEM |
|---|
| Cojali Reference | Name | Obtained by | OEM |
|---|
