OEM:
ZB4564 KNORR BREMSECojali reference:

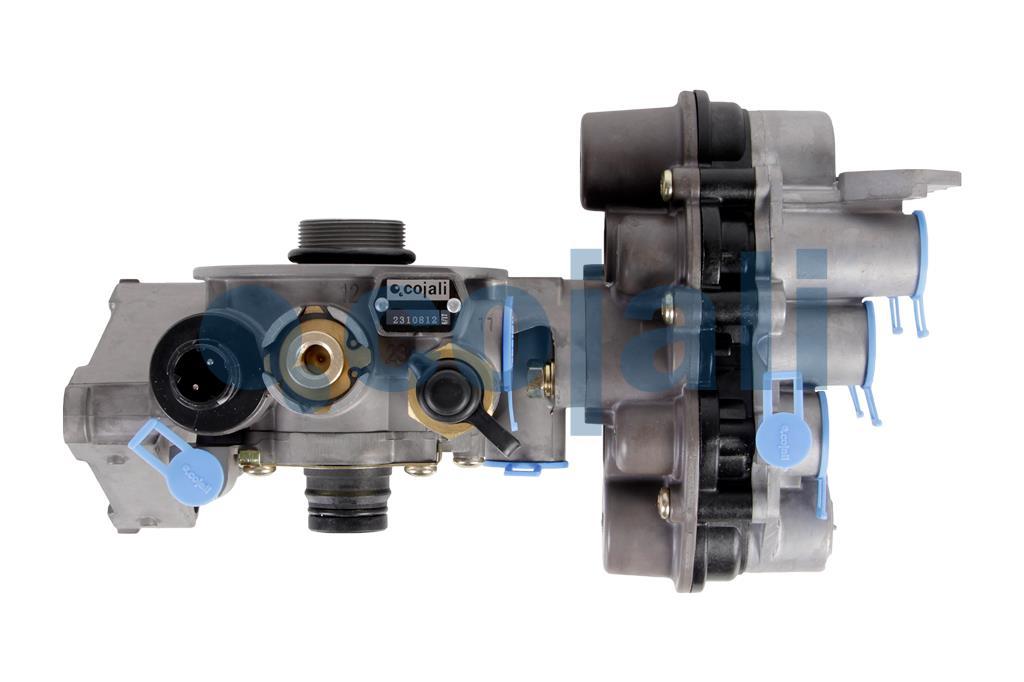

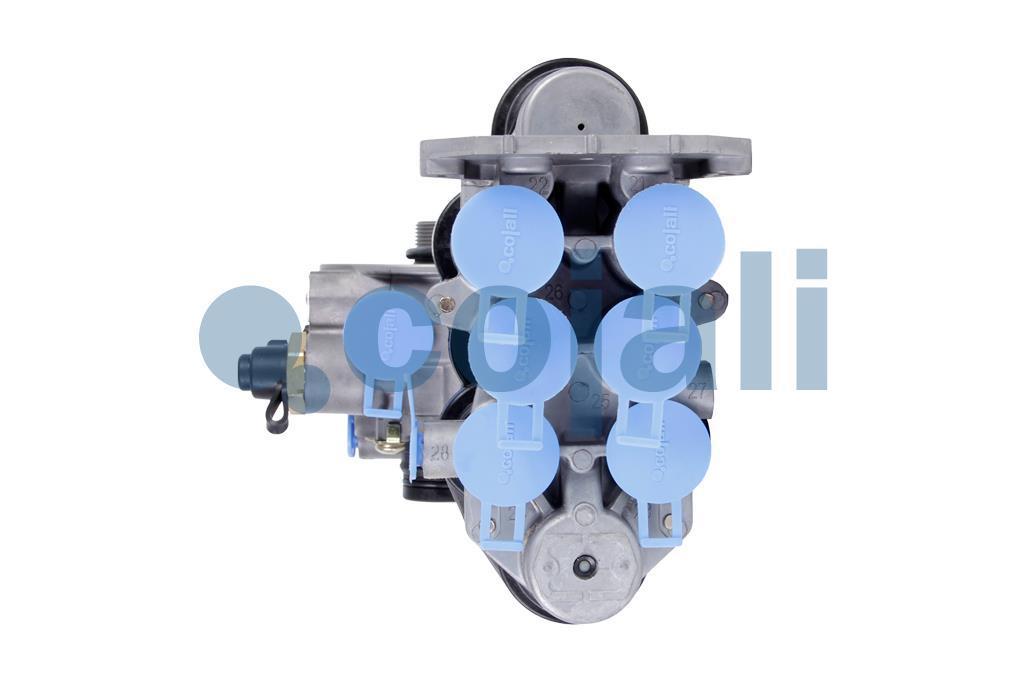

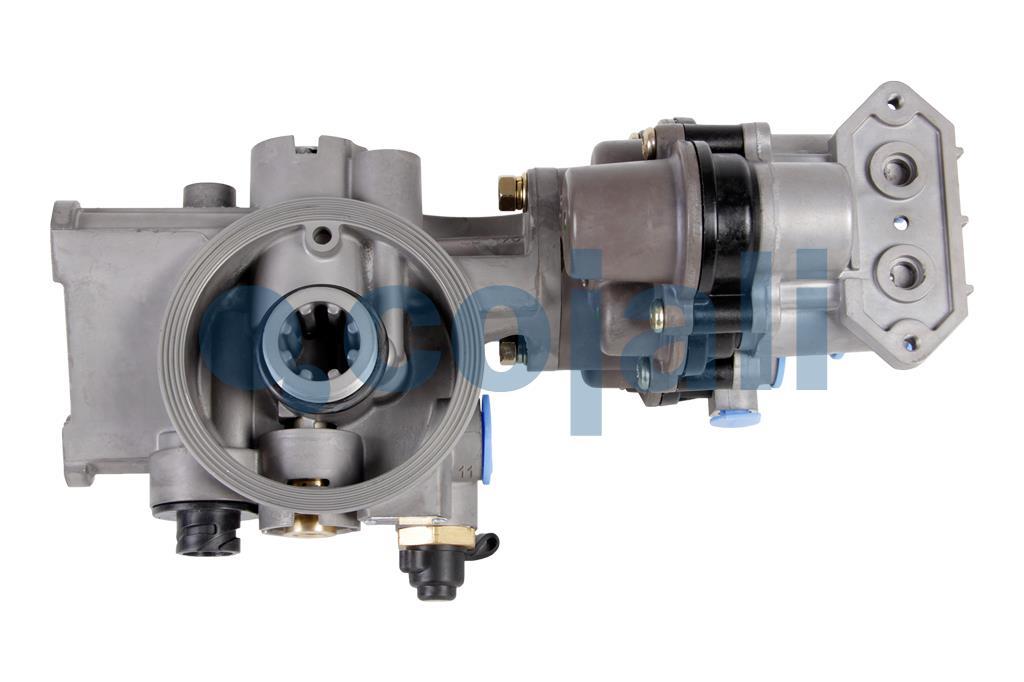

2310911Component responsible for compressed air management (drying and filtering) and its distribution to the several tanks of the vehicle, guaranteeing a clean and constant supply.
| Cartridge connection | M39x1,5 |
| Circuit 1 opening pressure | 82.67 psi (by-pass) |
| Circuit 2 opening pressure | 82.67 psi (by-pass) |
| Circuit 3 opening pressure | 108.78 psi |
| Circuit limitation pressure 1 | 145.04 psi |
| Circuit limitation pressure 2 | 145.04 psi |
| Circuit limitation pressure 3 | 123.28 psi |
| Circuit limitation pressure 4 | 123.28 psi |
| Cojali reference (circuit protection) | 2322509 |
| Cojali reference (dryer) | 2310802 |
| Connection 1 (circuit protection) | M22x1,5 VOSS |
| Connection 11 (dryer) | M22x1,5 |
| Connection 12 (dryer) | M22x1,5 |
| Connection 21 (circuit protection) | M22x1,5 VOSS |
| Connection 21 (dryer) | Sin rosca |
| Connection 22 (circuit protection) | M22x1,5 VOSS |
| Connection 22 (dryer) | M16x1,5 |
| Connection 23 (circuit protection) | M22x1,5 VOSS |
| Connection 23 (dryer) | Inflador |
| Connection 24 (circuit protection) | M22x1,5 VOSS |
| Connection 24 (dryer) | M22x1,5 |
| Connection 25 (circuit protection) | M22x1,5 VOSS |
| Connection 25 (dryer) | M10x1 |
| Connection 26 (circuit protection) | M22x1,5 VOSS |
| Connection 27 (circuit protection) | M12x1,5 |
| Connection 28 (circuit protection) | M12x1,5 |
| Cut-out pressure | 178.40 psi |
| Heater (type) | Bayoneta DIN 72585 A1-2 |
| OEM reference (circuit protection) | AE4506 |
| OEM reference (dryer) | LA 9004 |
| Safety device | Sí |
| Silent | No |
| Voltage (heater) | 24 V |
| Weight | 141.17 oz |
| Vehicle type | Brand | Series | Type | Model | Engine type |
|---|---|---|---|---|---|
| TRUCK | MERCEDES-BENZ | --------- | --------- | --------- | --------- |
| Manufacturer | OEM Reference | Main OEM |
|---|---|---|
| KNORR BREMSE | ZB4564 | |
| KNORR BREMSE | II39866F | - |
| MERCEDES-BENZ | 0024311415 | - |
| Cojali Reference | Name | OEM |
|---|
| Cojali Reference | Name | Obtained by | OEM |
|---|
