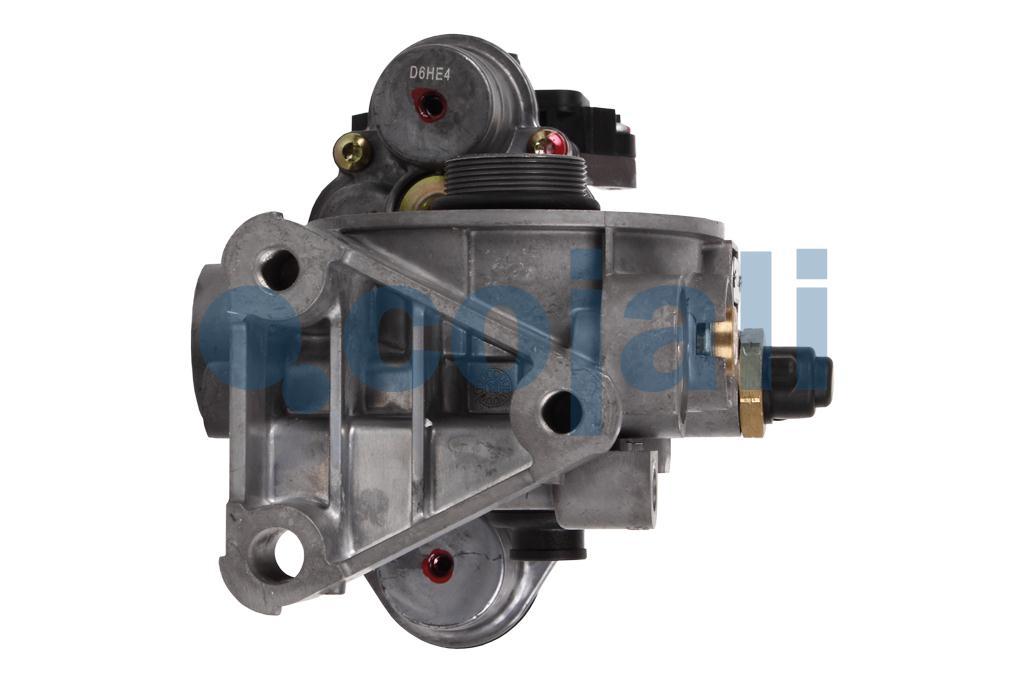

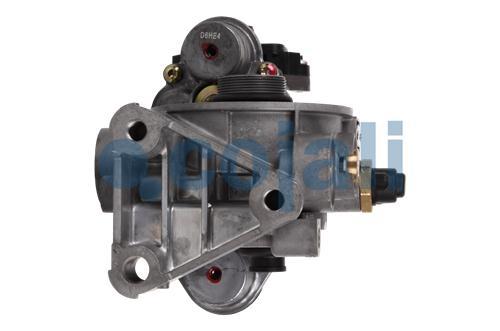

AIR PROCESSING UNIT (APU)

Name: AIR PROCESSING UNIT (APU)
Brand: Cojali
SKU: ZB4535
Rating: 4.29 (24 reviews)

AIR PROCESSING UNIT (APU), 2310909, ZB4535

AIR PROCESSING UNIT (APU)

OEM:

ZB4535 KNORR BREMSE

Cojali reference:

2310909 QUANTITY

Repair kits

TECHNICAL DATA

Cartridge metric	M39x1,5
Circuit 1 opening pressure	5,7 bar (by-pass)
Circuit 3 opening pressure	7,5 bar
Circuit 4 opening pressure	7,5 bar
Circuit limitation pressure 1	10,0 bar
Circuit limitation pressure 2	10,0 bar
Circuit limitation pressure 3	8,5 bar
Circuit limitation pressure 4	8,5 bar
Connection 1 of the circuit protection	M22x1,5 VOSS
Connection 11 of the dryer	M22x1,5
Connection 12 of the dryer	M22x1,5
Connection 21 of the circuit protection	M22x1,5 VOSS
Connection 21 of the dryer	Sin rosca
Connection 22 of the circuit protection	M22x1,5 VOSS
Connection 22 of the dryer	M16x1,5
Connection 23 of the circuit protection	M22x1,5 VOSS
Connection 23 of the dryer	Inflador
Connection 24 of the circuit protection	M22x1,5 VOSS
Connection 24 of the dryer	M22x1,5 (Taponada)
Connection 25 of the circuit protection	M22x1,5 VOSS
Connection 25 of the dryer	M10x1 (Taponada)
Connection 26 of the circuit protection	M22x1,5 VOSS
Connection 27 of the circuit protection	M12x1,5
Connection 28 of the circuit protection	M12x1,5
Cut-out pressure	12,3 bar
Heater type	Bayoneta DIN 72585 A1-2
Heater voltage	24 V
OEM Reference of the circuit protection	AE4510
OEM Reference of the dryer	LA 9011
Presión apertura del circuito 2	5,7 bar (by-pass)
Pressure sensor connector	Bayoneta DIN 72585 A1-6
Pressure sensor voltage	24V
Reference of the circuit protection	2322500
Reference of the dryer	2310804
Safety device	Sí
SILENCER	No
Weight	4002.00 g

APPLICATIONS

Vehicle type	Brand	Series	Type	Model	Engine type
TRUCK	MERCEDES BENZ	---------	---------	---------	---------

CROSS-REFERENCING

Manufacturer	OEM Reference	Main OEM
KNORR BREMSE	ZB4535
KNORR BREMSE	II38311F	-
KNORR BREMSE	II38311F170	-

RELATED PRODUCTS

	Cojali Reference	Name	OEM

REPAIR KITS

	Cojali Reference	Name	Obtained by	OEM
