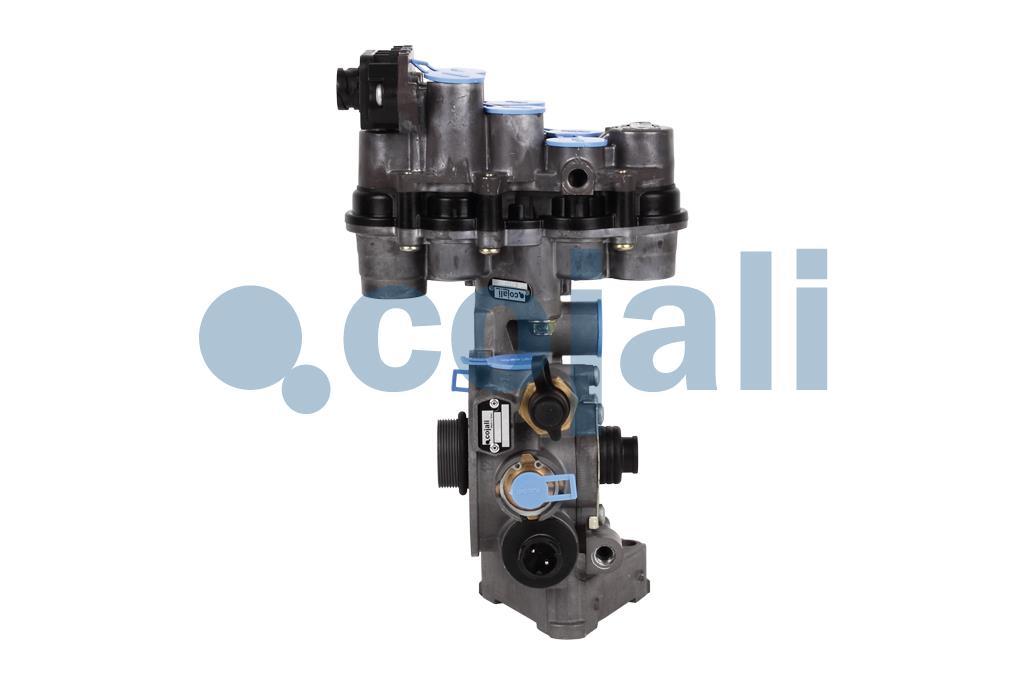

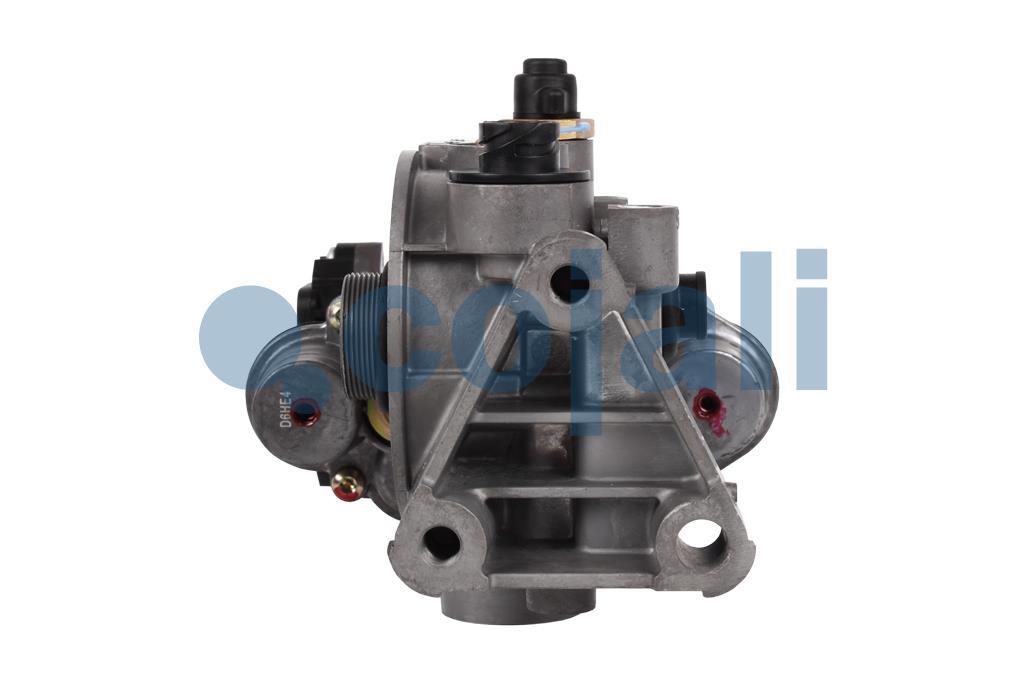

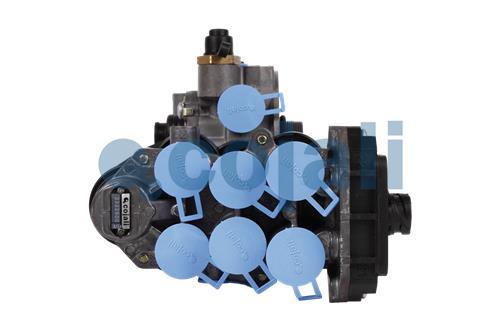

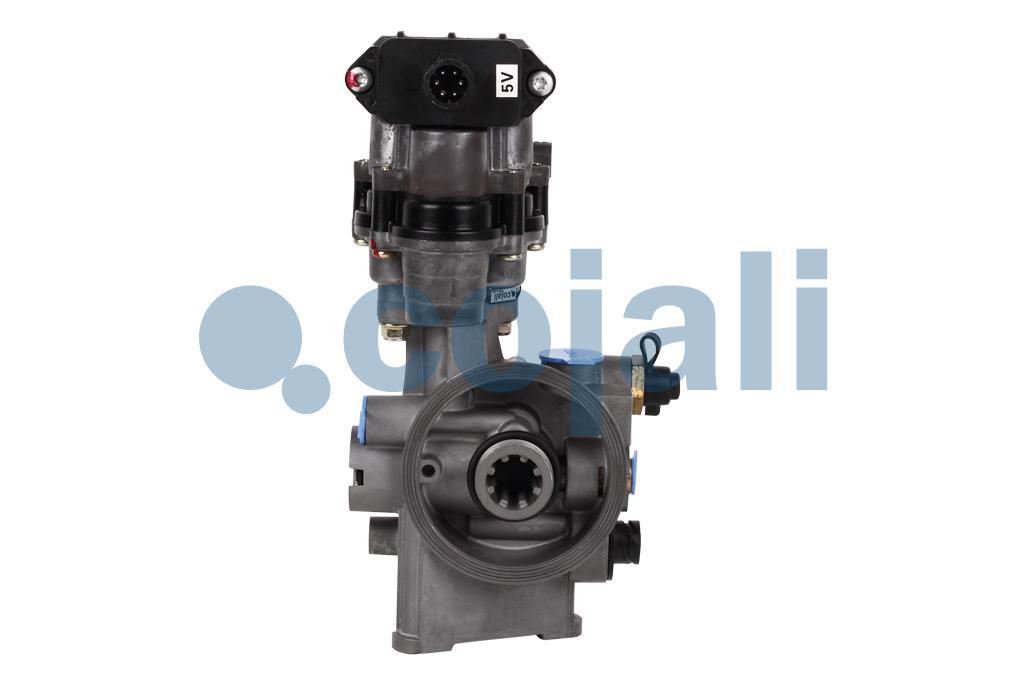

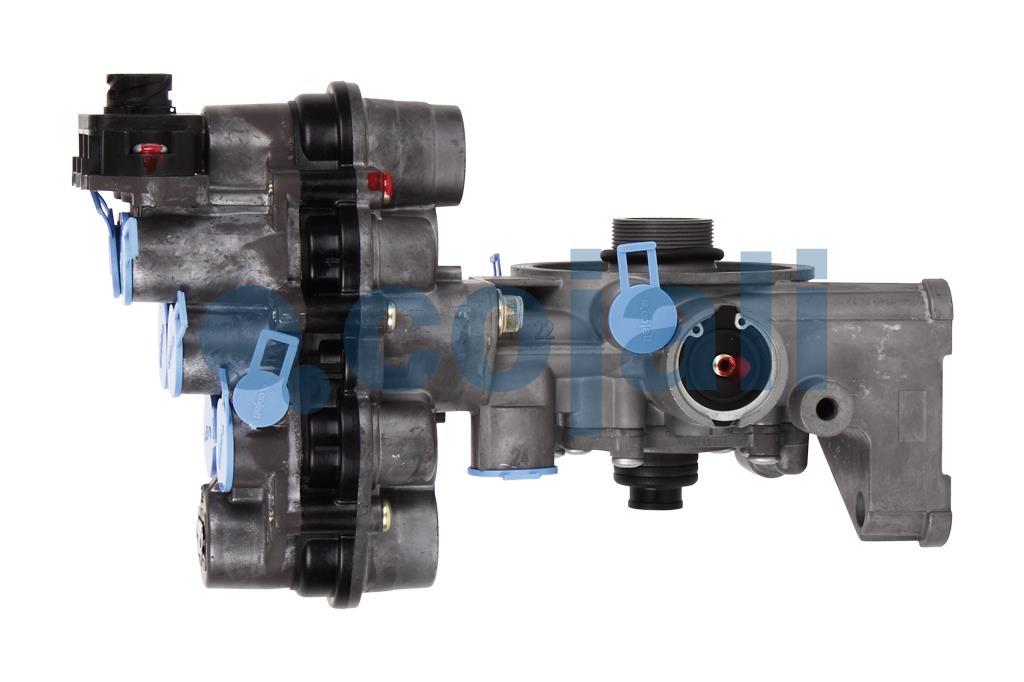

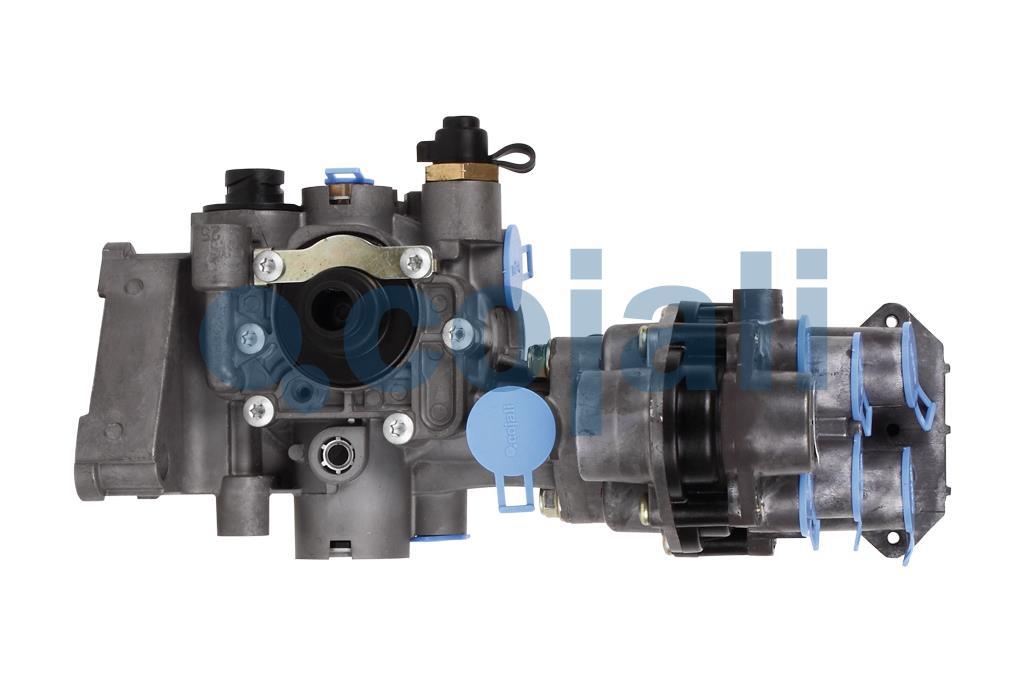

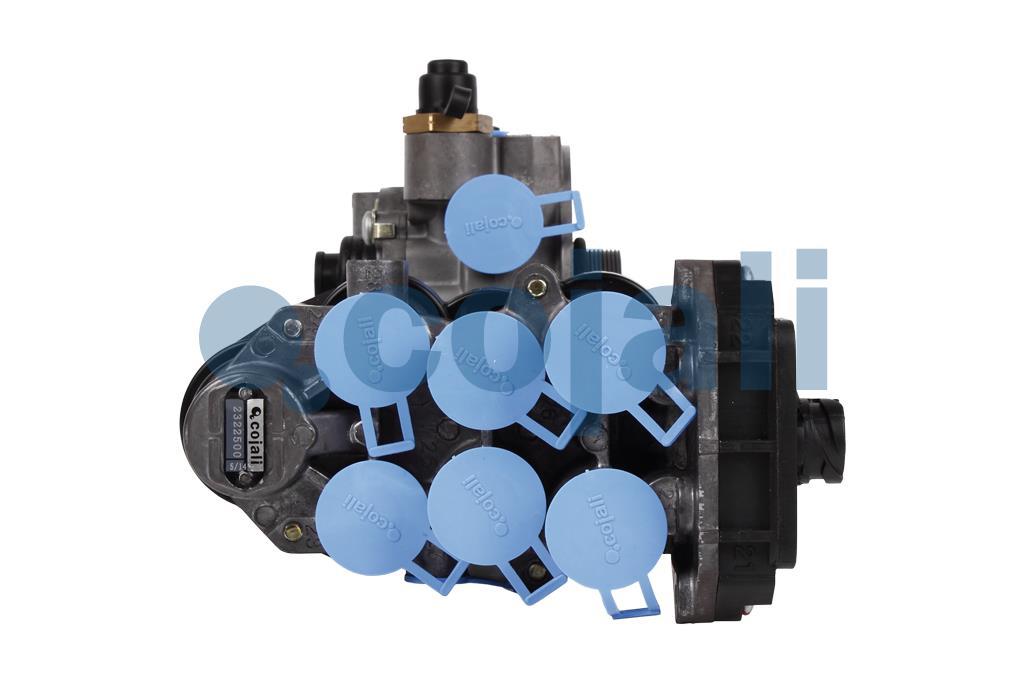

AIR PROCESSING UNIT (APU)

AIR PROCESSING UNIT (APU)

OEM:

ZB4534 KNORR BREMSE

Cojali reference:

2310902

TECHNICAL DATA

Cartridge metric M39x1,5
Circuit 1 opening pressure 5,7 bar (by-pass)
Circuit 3 opening pressure 7,5 bar
Circuit 4 opening pressure 7,5 bar
Circuit limitation pressure 1 10,0 bar
Circuit limitation pressure 2 10,0 bar
Circuit limitation pressure 3 8,5 bar
Circuit limitation pressure 4 8,5 bar
Connection 1 of the circuit protection M22x1,5 VOSS
Connection 11 of the dryer M22x1,5
Connection 12 of the dryer M12x1,5 (Taponada)
Connection 21 of the circuit protection M22x1,5 VOSS
Connection 21 of the dryer Sin rosca
Connection 22 of the circuit protection M22x1,5 VOSS
Connection 22 of the dryer M16x1,5
Connection 23 of the circuit protection M22x1,5 VOSS
Connection 23 of the dryer Inflador
Connection 24 of the circuit protection M22x1,5 VOSS
Connection 24 of the dryer M22x1,5 (Taponada)
Connection 25 of the circuit protection M22x1,5 VOSS
Connection 25 of the dryer M10x1 (Taponada)
Connection 26 of the circuit protection M22x1,5 VOSS
Connection 27 of the circuit protection M12x1,5
Connection 28 of the circuit protection M12x1,5
Cut-out pressure 12,3 bar
Heater type Bayoneta DIN 72585 A1-2
Heater voltage 24 V
OEM Reference of the circuit protection AE4510
OEM Reference of the dryer LA 9010
Presión apertura del circuito 2 5,7 bar (by-pass)
Pressure sensor connector Bayoneta DIN 72585 A1-6
Pressure sensor voltage 24V
Reference of the circuit protection 2322500
Reference of the dryer 2310803
Safety device
SILENCER No
Weight 4002.00 g

APPLICATIONS

Vehicle type Brand Series Type Model Engine type
TRUCK MERCEDES BENZ --------- --------- --------- ---------

CROSS-REFERENCING

Manufacturer OEM Reference Main OEM
KNORR BREMSE ZB4534
KNORR BREMSE II38310FN00 -
KNORR BREMSE II38310F -
KNORR BREMSE II38310F170 -
KNORR BREMSE II38310FN49 -
KNORR BREMSE K125169 -
MERCEDES BENZ 0024310515 -
MERCEDES BENZ 0024310415 -
MERCEDES BENZ A0024310415 -
MERCEDES BENZ A0024310515 -
