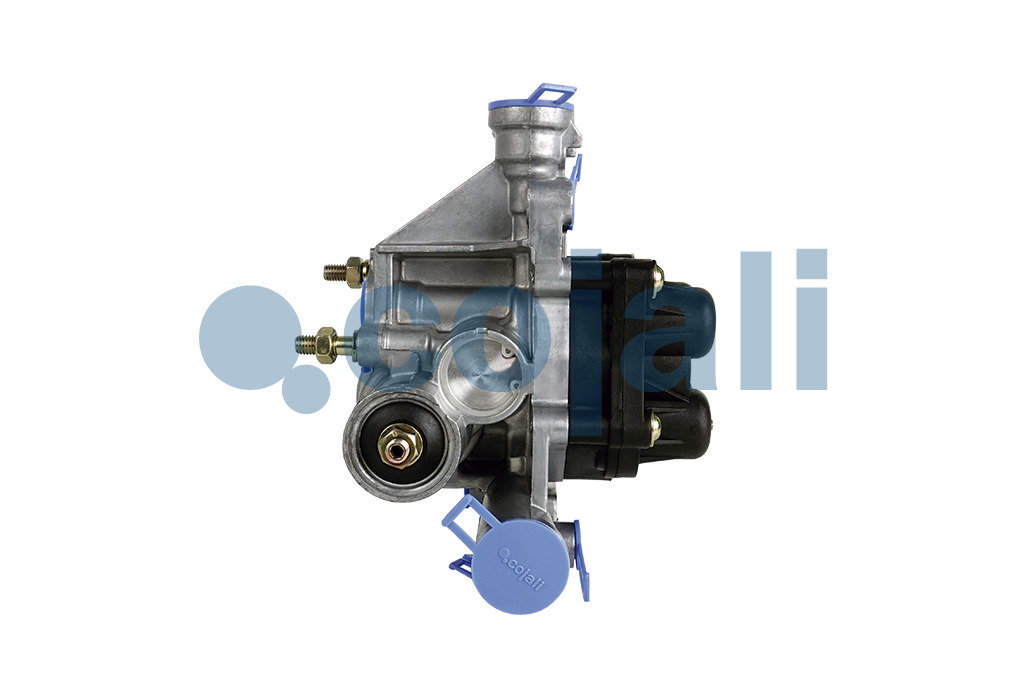

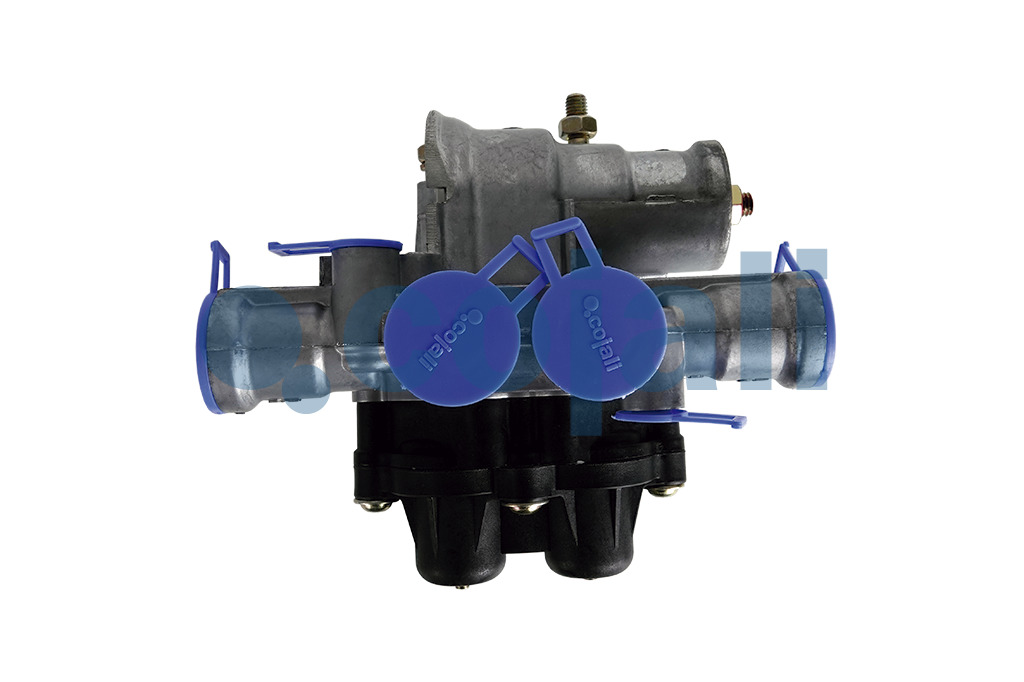

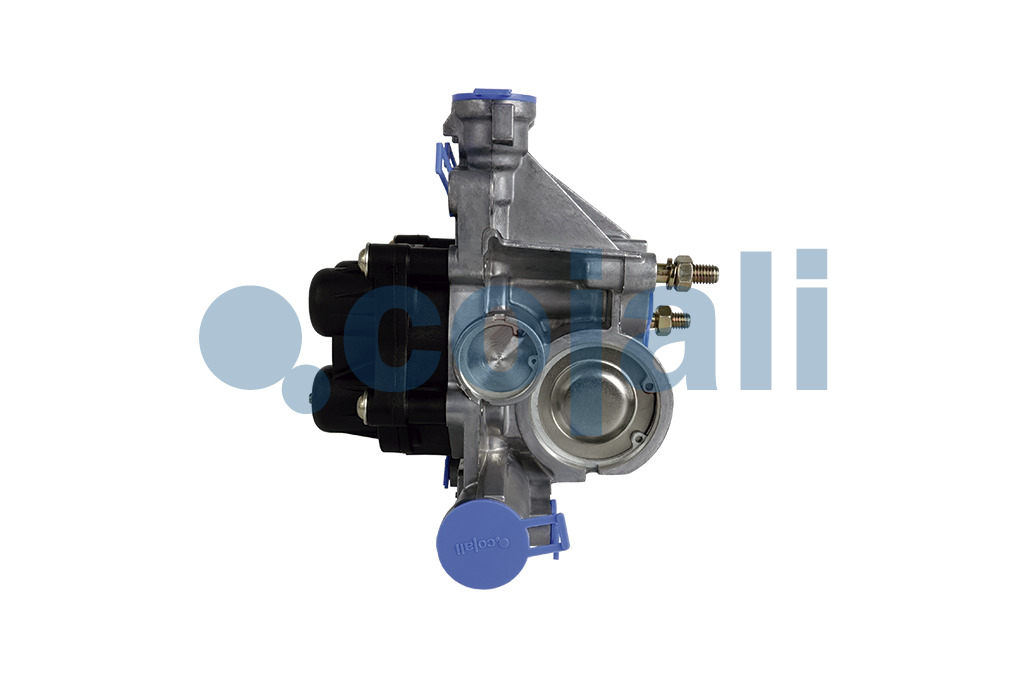

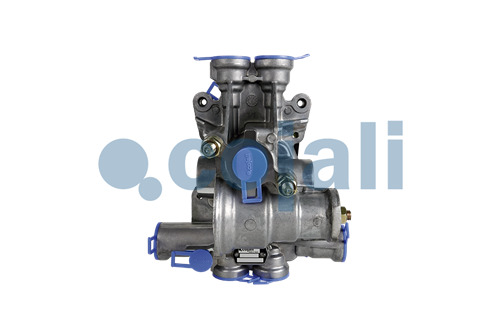

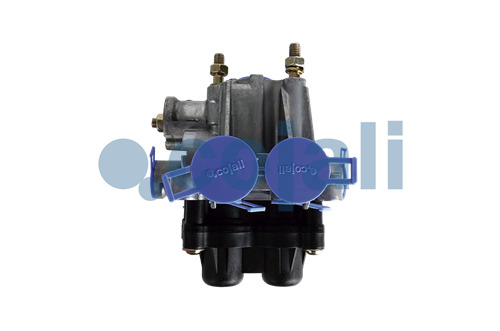

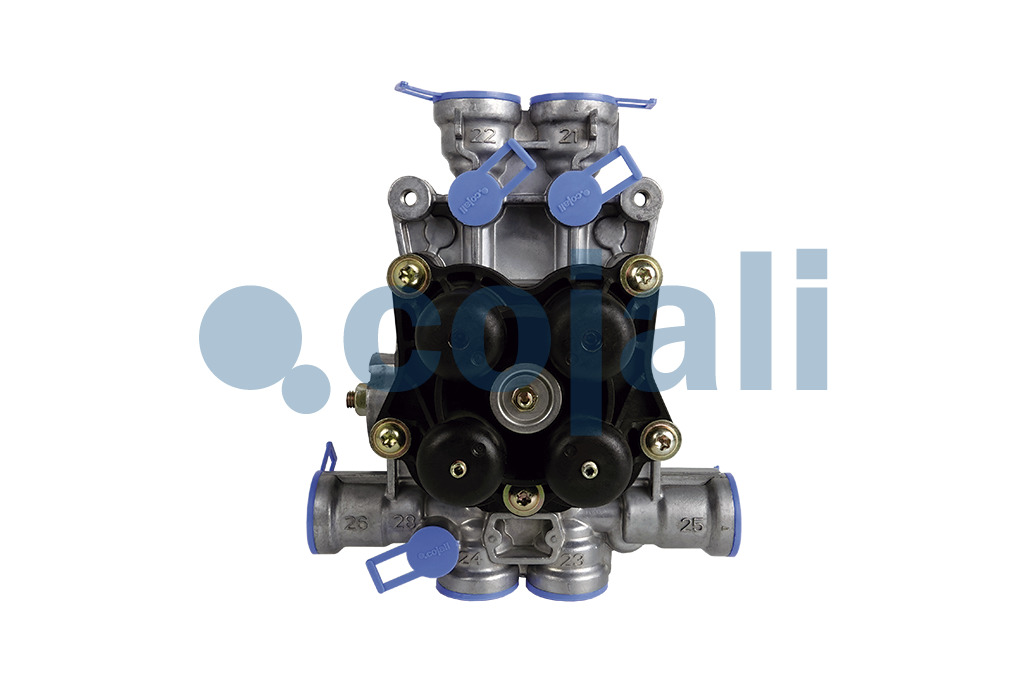

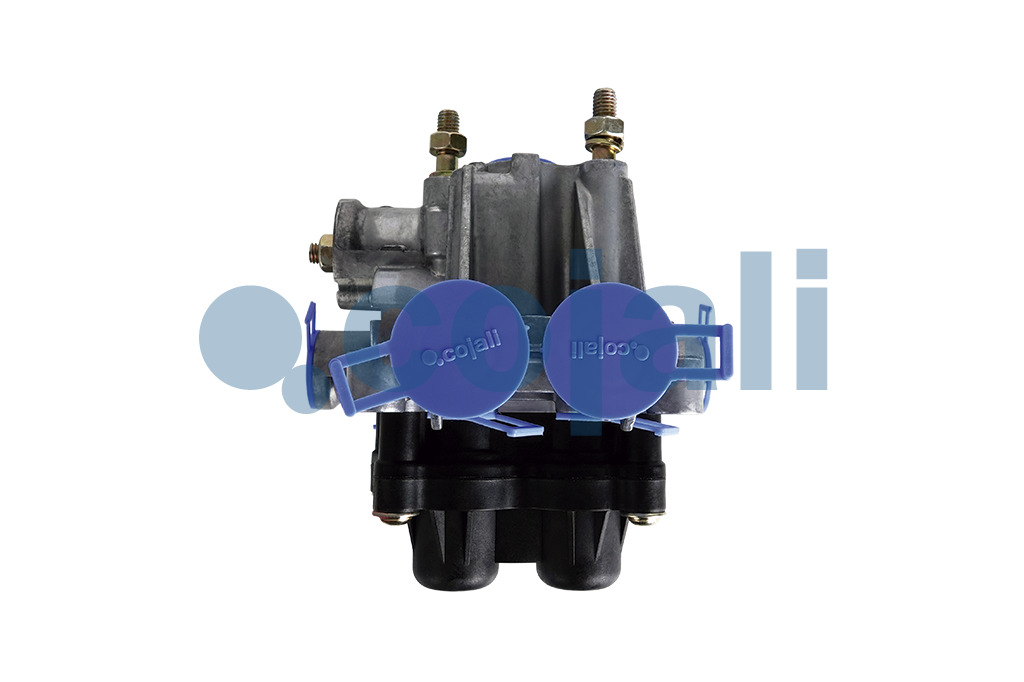

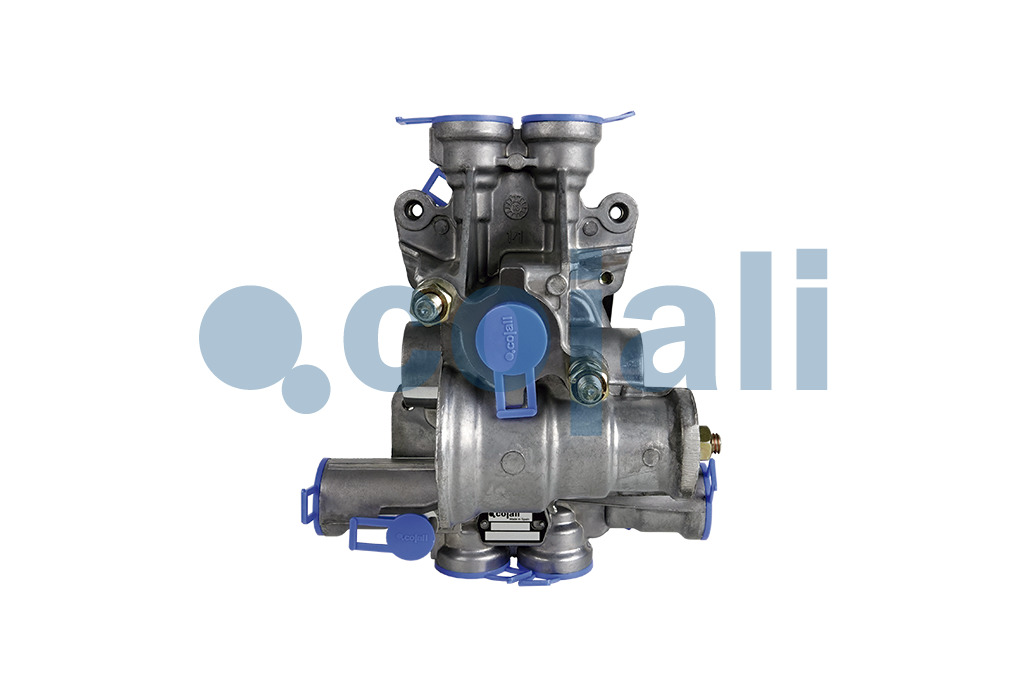

4-WAY PROTECTION VALVE

4-WAY PROTECTION VALVE

OEM:

AE4804 KNORR BREMSE

Cojali reference:

2322212

TECHNICAL DATA

Circuit limitation pressure 3 8,5 bar
Circuit limitation pressure 4 8,5 bar
Circuit opening pressure 1 9,0 bar (by-pass)
Circuit opening pressure 2 9,0 bar (by-pass)
Circuit opening pressure 3 7,5 bar
Circuit opening pressure 4 7,5 bar
Connection 1 M16x1,5
Connection 21 M22x1,5 VOSS & M12x1,5
Connection 22 M22x1,5 VOSS & M12x1,5
Connection 23 M22x1,5 VOSS
Connection 24 M22x1,5 VOSS
Connection 25 M22x1,5 VOSS
Connection 26 M22x1,5 VOSS
Connection 27 M12x1,5
Connection 28 M12x1,5
Safety device SI
Weight 1929.50 g

CROSS-REFERENCING

Manufacturer OEM Reference Main OEM
KNORR BREMSE AE4804
KNORR BREMSE K014440 -

REPAIR KITS

  Cojali Reference Name Obtained by OEM
