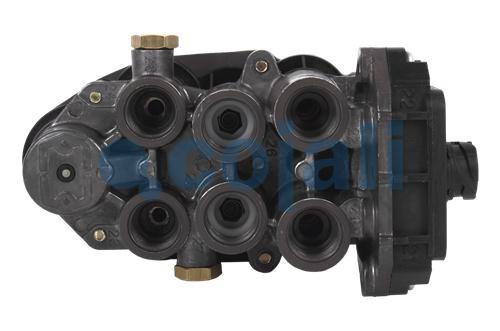

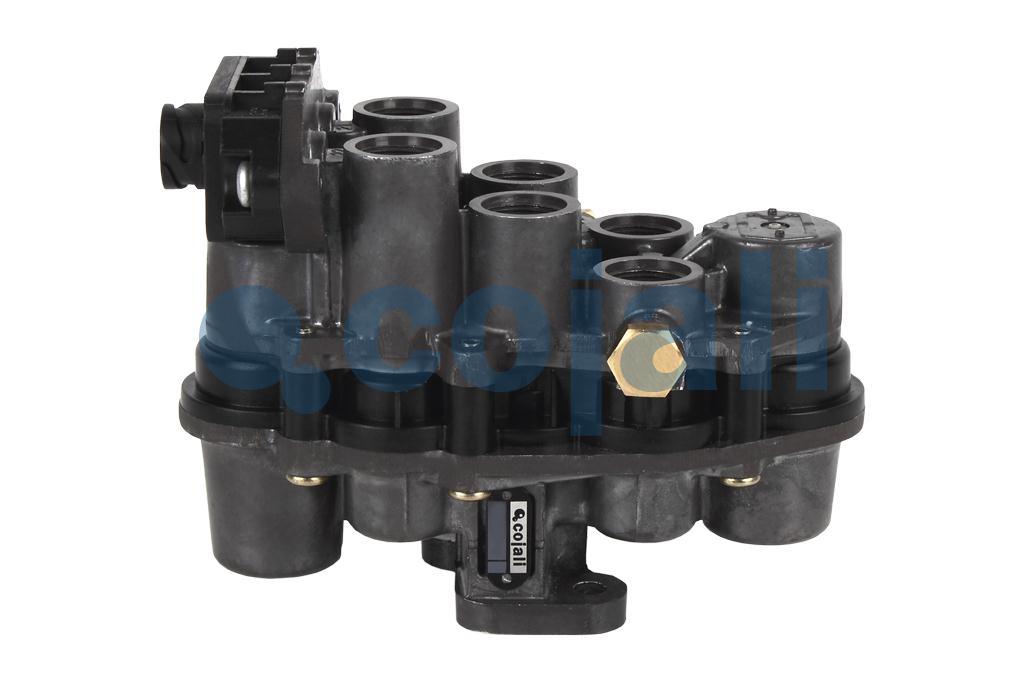

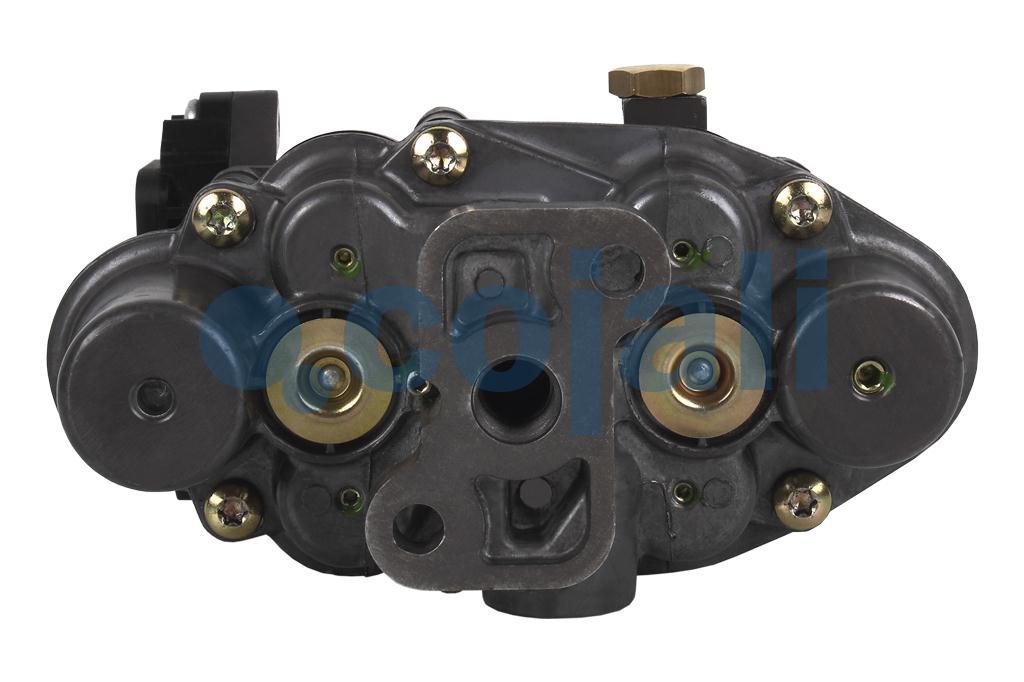

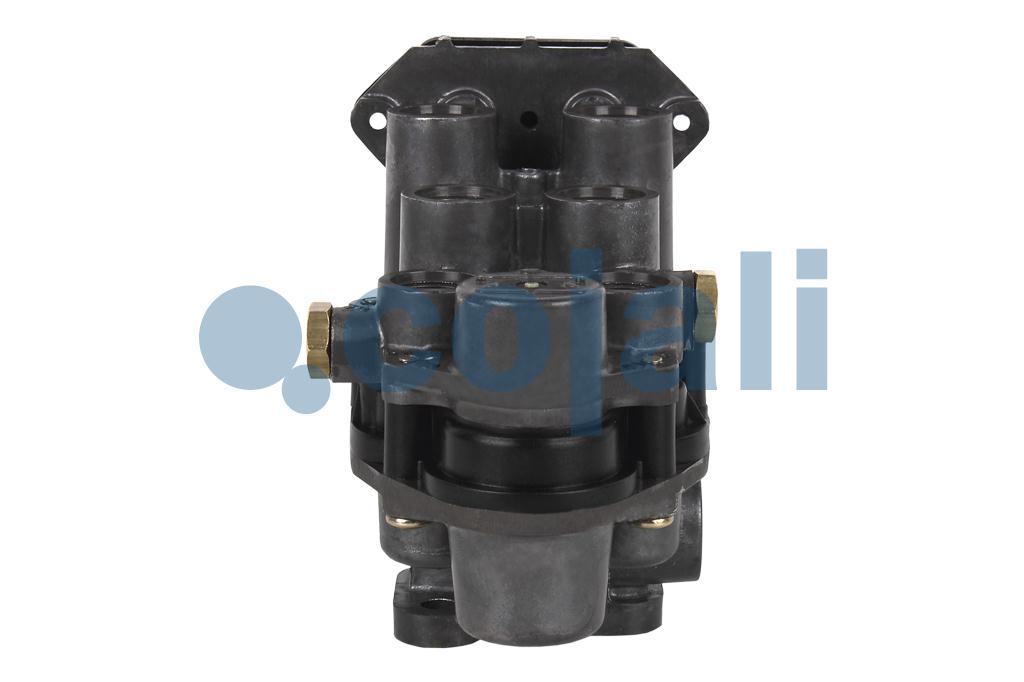

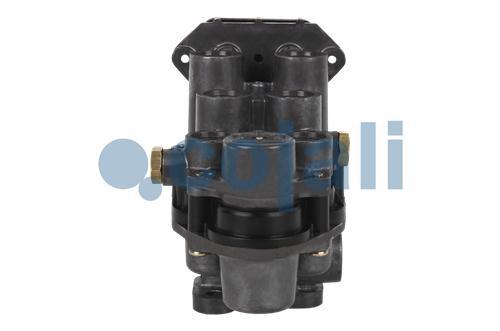

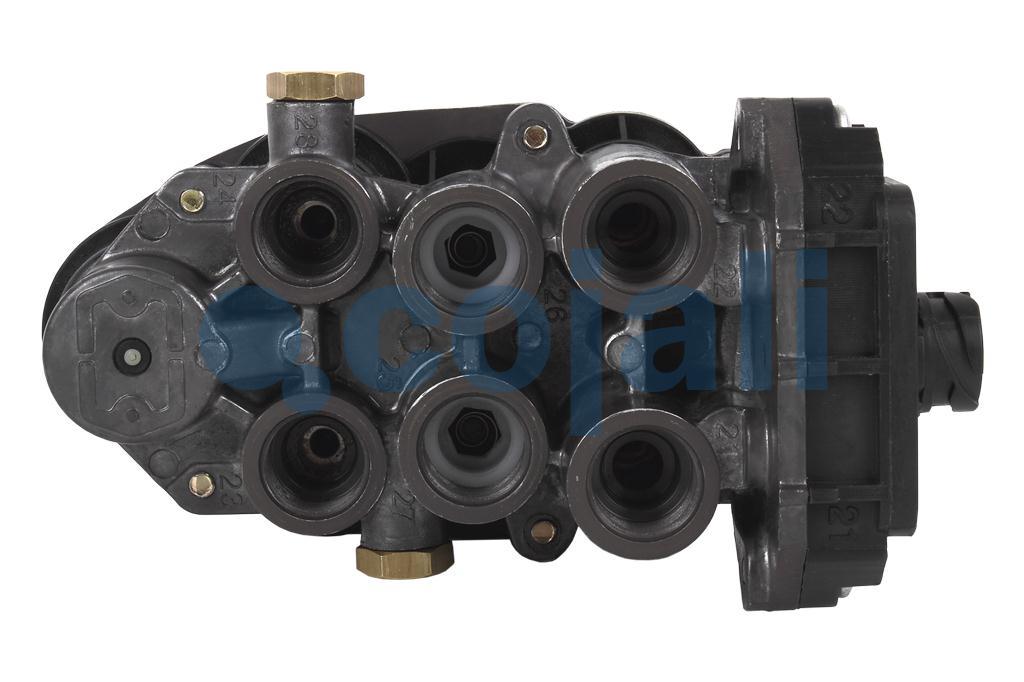

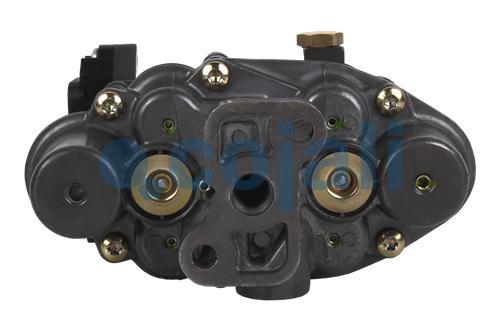

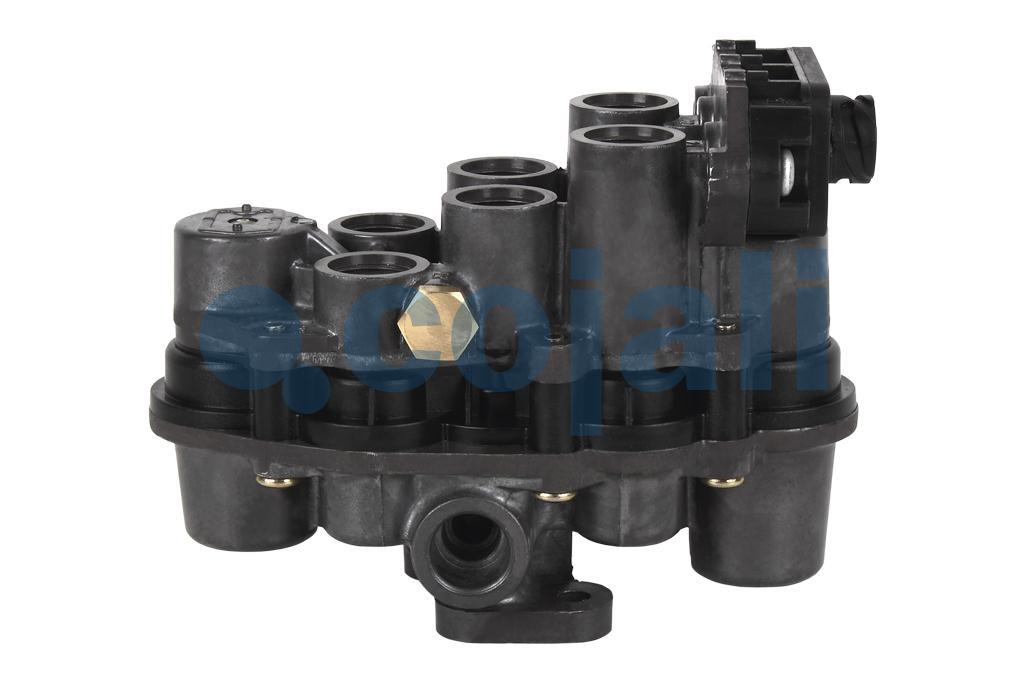

PROCESSING UNIT PROTECTION VALVE

PROCESSING UNIT PROTECTION VALVE

OEM:

AE4526 KNORR BREMSE

Cojali reference:

2322507

TECHNICAL DATA

Circuit limitation pressure 3 8,5 bar
Circuit opening pressure 1 9,0 bar (by-pass)
Circuit opening pressure 2 9,0 bar (by-pass)
Circuit opening pressure 3 7,5 bar
Circuit opening pressure 4 9,0 bar (by-pass)
Connection 1 M16x1,5
Connection 21 M22x1,5 VOSS
Connection 22 M22x1,5 VOSS
Connection 23 M22x1,5 VOSS
Connection 24 M22x1,5 VOSS
Connection 25 M22x1,5 VOSS
Connection 26 M22x1,5 VOSS
Connection 27 M12x1,5 (Taponada)
Connection 28 M12x1,5 (Taponada)

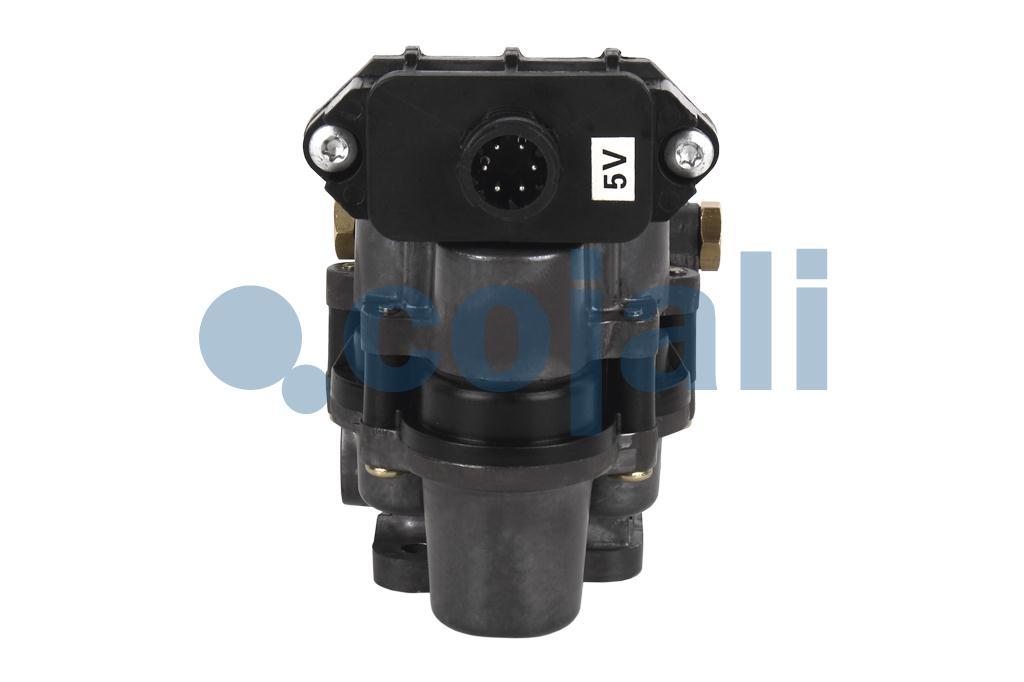

Electrical connection Bayoneta DIN 72585 A1-6
Safety device Si
Voltage 5 V
Weight 2118.00 g

APPLICATIONS

Vehicle type Brand Series Type Model Engine type
TRUCK DAF --------- --------- --------- ---------

CROSS-REFERENCING

Manufacturer OEM Reference Main OEM
DAF 1612053 -
KNORR BREMSE AE4526
KNORR BREMSE II37464 -
KNORR BREMSE II39010F004 -
KNORR BREMSE II39010F0042 -
KNORR BREMSE II39010FN00 -
KNORR BREMSE II39010FN50 -
KNORR BREMSE II39010FN52 -
LEYLAND 1612053 -
PACCAR 1612053 -
