United States
OEM:

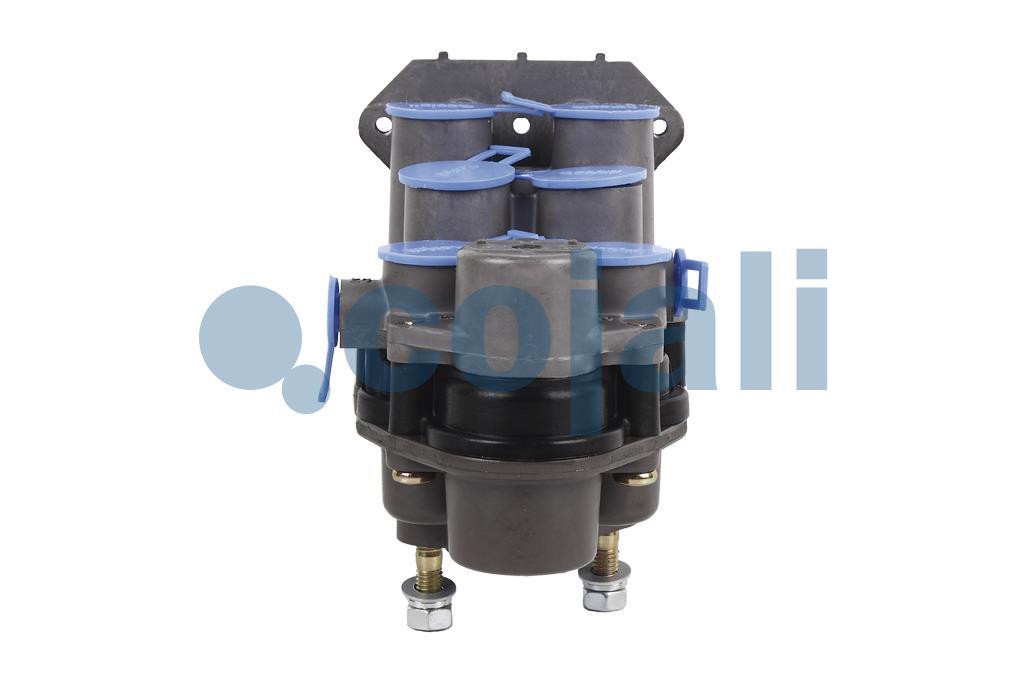

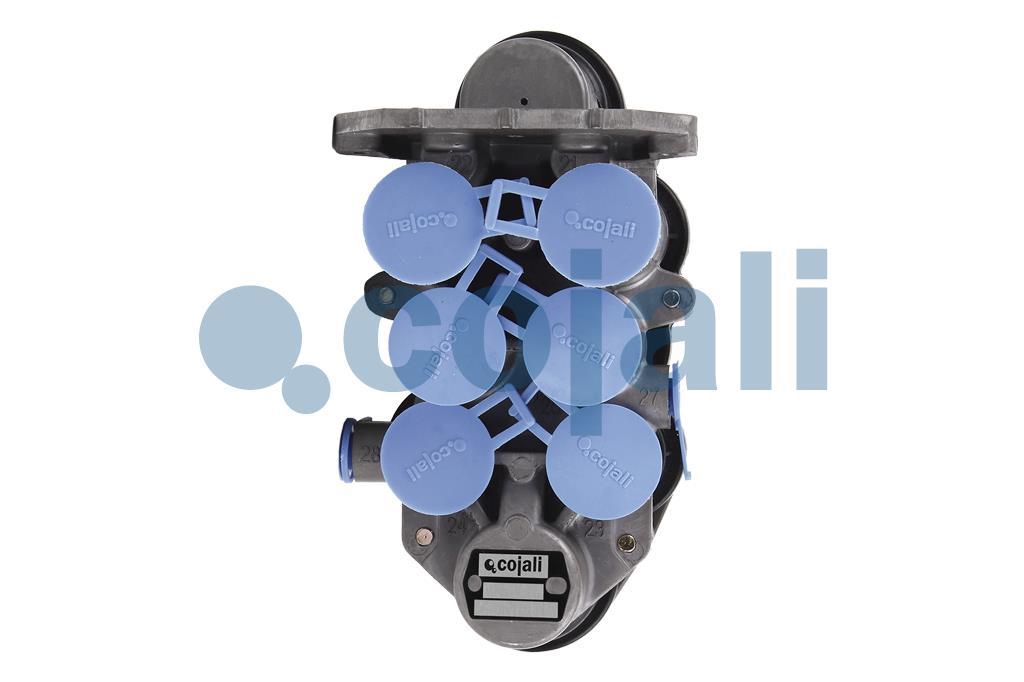

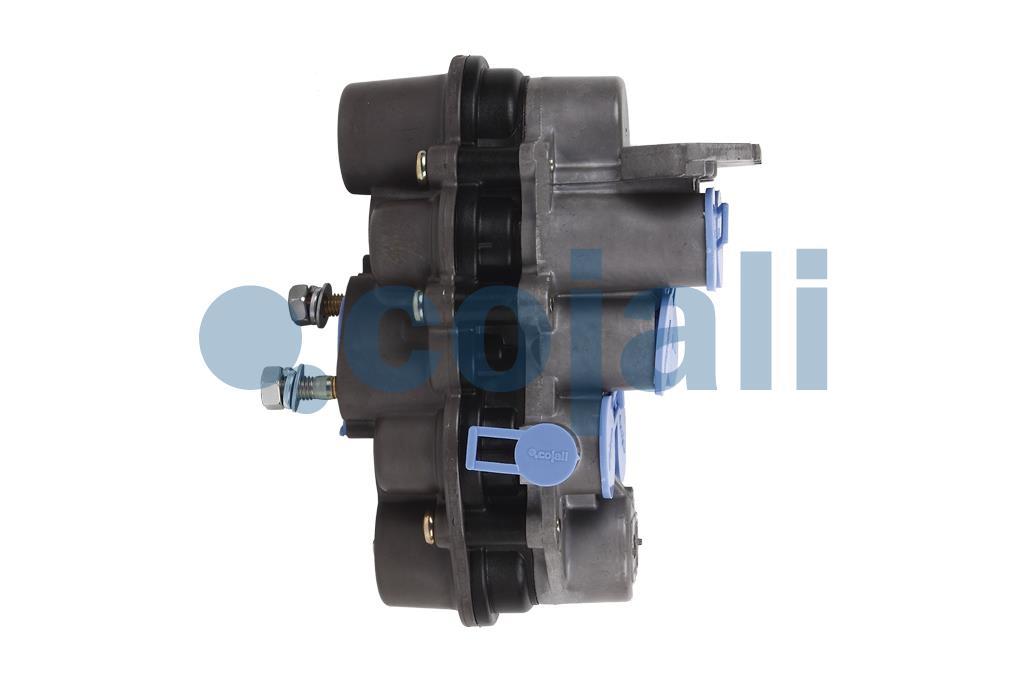

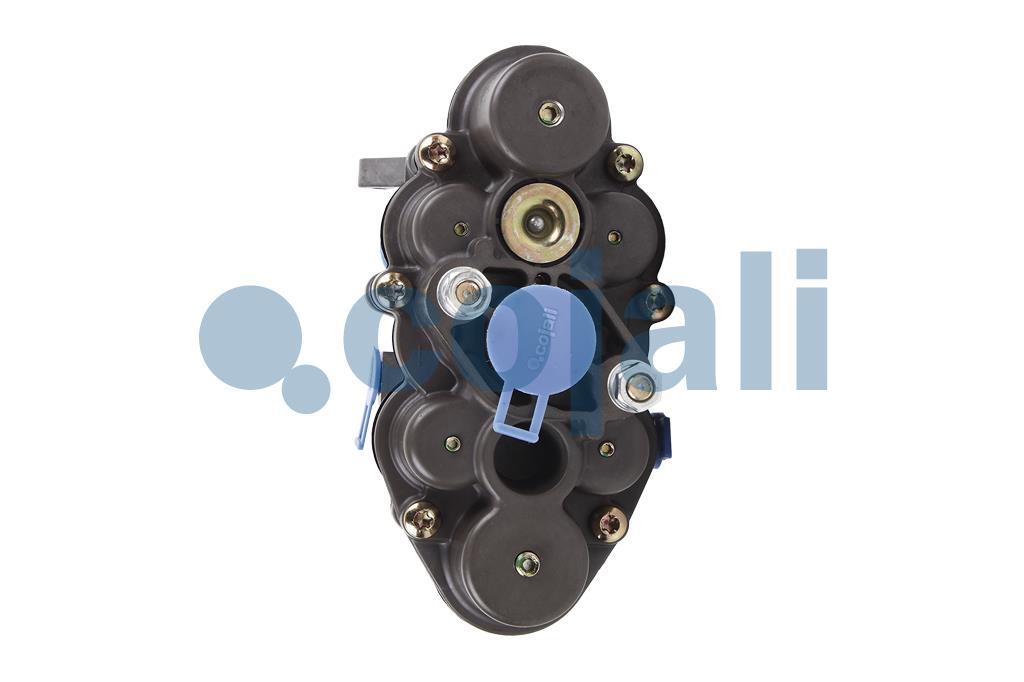

AE4506 KNORR BREMSECojali reference:
2322509| Circuit limitation pressure 1 | 145.04 psi |
| Circuit limitation pressure 2 | 145.04 psi |
| Circuit limitation pressure 3 | 123.28 psi |
| Circuit limitation pressure 4 | 123.28 psi |
| Circuit opening pressure 1 | 130.53 psi (by-pass) |
| Circuit opening pressure 2 | 130.53 psi (by-pass) |
| Circuit opening pressure 3 | 108.78 psi |
| Circuit opening pressure 4 | 108.78 psi |
| Connection 1 | M22x1,5 VOSS |
| Connection 21 | M22x1,5 VOSS |
| Connection 22 | M22x1,5 VOSS |
| Connection 23 | M22x1,5 VOSS |
| Connection 24 | M22x1,5 VOSS |
| Connection 25 | M22x1,5 VOSS |
| Connection 26 | M22x1,5 VOSS |
| Connection 27 | M12x1,5 |
| Connection 28 | M12x1,5 |
| Safety device | Si |
| Weight | 4.44 lb |
| Vehicle type | Brand | Series | Type | Model | Engine type |
|---|---|---|---|---|---|
| TRUCK | MERCEDES-BENZ | --------- | --------- | --------- | --------- |
| Manufacturer | OEM Reference | Main OEM |
|---|---|---|
| KNORR BREMSE | II38797F | - |
| KNORR BREMSE | AE4506 | |
| KNORR BREMSE | II38797F004 | - |
| KNORR BREMSE | II38797F100 | - |
| KNORR BREMSE | II38797FN15 | - |
| KNORR BREMSE | II38797FN50 | - |
| Cojali Reference | Name | Obtained by | OEM |
|---|
