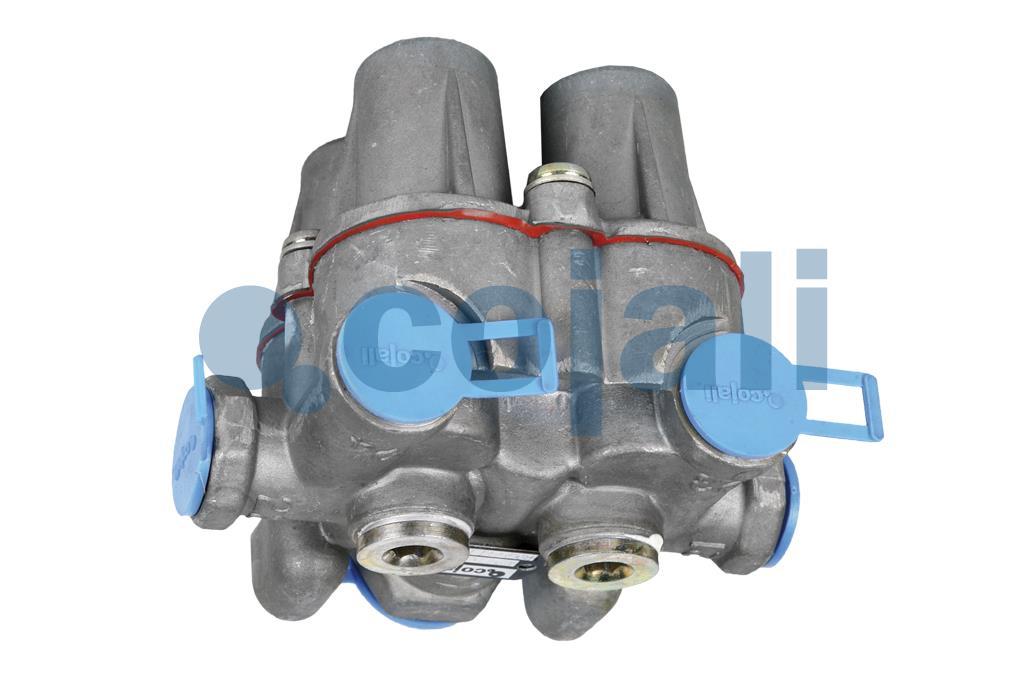

4-WAY PROTECTION VALVE

Name: 4-WAY PROTECTION VALVE
Brand: Cojali
SKU: AE4411
Rating: 4.26 (19 reviews)

4-WAY PROTECTION VALVE

OEM:

AE4411 KNORR BREMSE

Cojali reference:

2322406 QUANTITY

Technical sheet

Repair kits

Add to the basket

TECHNICAL DATA

Technical sheet

Circuit opening pressure 1	6,7 bar
Circuit opening pressure 2	6,7 bar
Circuit opening pressure 3	5,8 bar
Circuit opening pressure 4	5,1 bar
Connection 1	M22x1,5
Connection 21	M16x1,5
Connection 22	M16x1,5
Connection 23	M16x1,5
Connection 24	M16x1,5
Safety device	No
Weight	889.50 g

CROSS-REFERENCING

Manufacturer	OEM Reference	Main OEM
IVECO	935381	-
KNORR BREMSE	AE4411
KNORR BREMSE	I93648	-

REPAIR KITS

	Cojali Reference	Name	Obtained by	OEM
