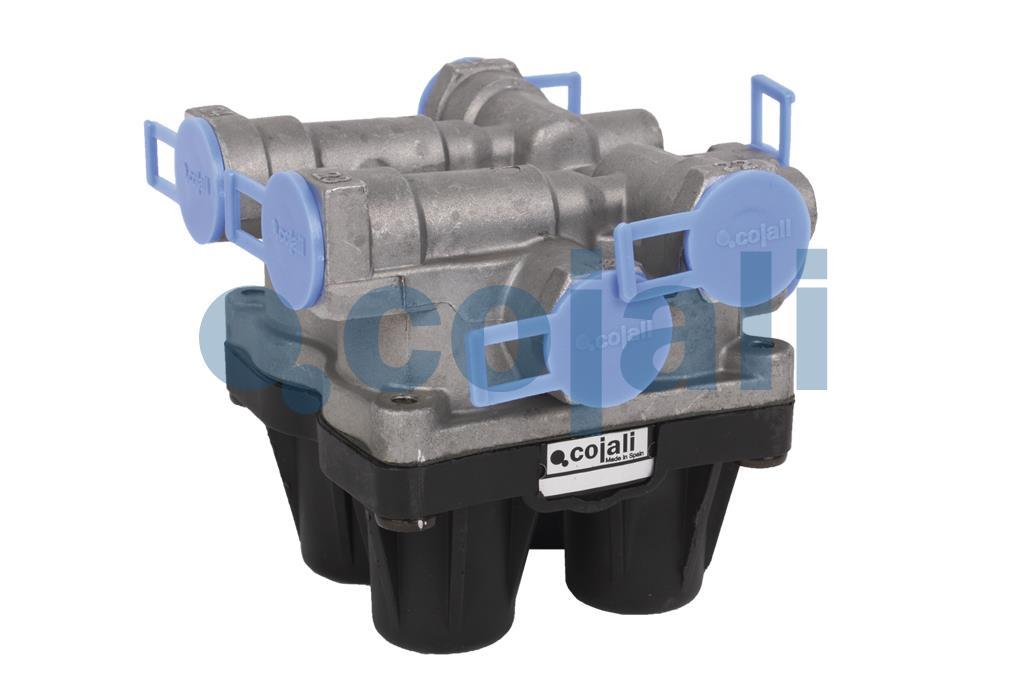

4-WAY PROTECTION VALVE

4-WAY PROTECTION VALVE, 2222429, 9347141400
Home Online Catalogue Brake and suspension systems components 4-WAY PROTECTION VALVE

4-WAY PROTECTION VALVE

OEM:

9347141400 WABCO

Cojali reference:

2222429

DESCRIPTION

Valve that distributes air between the different pneumatic circuits and isolates affected sectors in case of leakage, improving the safety of the overall system.

TECHNICAL DATA

Technical sheet Technical sheet
Circuit 1 opening pressure 91.37 psi (by-pass)
Circuit 2 opening pressure 91.37 psi (by-pass)
Circuit 3 opening pressure 84.12 psi
Circuit 4 opening pressure 84.12 psi
Connection 1 M22x1,5
Connection 11 M16x1,5
Connection 12 M16x1,5
Connection 21 M16x1,5
Connection 22 M16x1,5
Connection 23 M16x1,5
Connection 24 M16x1,5
Safety device No
Weight 26.98 oz

APPLICATIONS

Vehicle type Brand Series Type Model Engine type
TRUCK VOLVO --------- --------- --------- ---------
TRUCK VOLVO --------- FM 12/340 FM12 ---------
TRUCK VOLVO --------- FM 12/340 FM12 ---------
TRUCK VOLVO --------- FM 12/340 FM12 ---------
TRUCK VOLVO --------- FM 12/340 FM12 ---------
TRUCK VOLVO --------- FM 12/340 FM12 ---------
TRUCK VOLVO --------- FM 12/340 FM12 ---------
TRUCK VOLVO --------- FM 12/340 FM12 ---------
TRUCK VOLVO --------- FM 12/340 FM12 ---------
TRUCK VOLVO --------- FM 12H/340 FM12 ---------
TRUCK VOLVO --------- FM 12/380 FM12 ---------
TRUCK VOLVO --------- FM 12/380 FM12 ---------
TRUCK VOLVO --------- FM 12/380 FM12 ---------
TRUCK VOLVO --------- FM 12/380 FM12 ---------
TRUCK VOLVO --------- FM 12/380 FM12 ---------
TRUCK VOLVO --------- FM 12/380 FM12 ---------
TRUCK VOLVO --------- FM 12/380 FM12 ---------
TRUCK VOLVO --------- FM 12/380 FM12 ---------
TRUCK VOLVO --------- FM 12H/380 FM12 ---------
TRUCK VOLVO --------- FM 12/420 FM12 ---------
TRUCK VOLVO --------- FM 12/420 FM12 ---------
TRUCK VOLVO --------- FM 12/420 FM12 ---------
TRUCK VOLVO --------- FM 12/420 FM12 ---------
TRUCK VOLVO --------- FM 12/420 FM12 ---------
TRUCK VOLVO --------- FM 12/420 FM12 ---------
TRUCK VOLVO --------- FM 12/420 FM12 ---------
TRUCK VOLVO --------- FM 12/420 FM12 ---------
TRUCK VOLVO --------- FM 12H/420 FM12 ---------
TRUCK VOLVO --------- FM 9/260 FM9 ---------
TRUCK VOLVO --------- FM 9/260 FM9 ---------
TRUCK VOLVO --------- FM 9/300 FM9 ---------
TRUCK VOLVO --------- FM 9/300 FM9 ---------
TRUCK VOLVO --------- FM 9/340 FM9 ---------
TRUCK VOLVO --------- FM 9/340 FM9 ---------
TRUCK VOLVO --------- FM 9/380 FM9 ---------
TRUCK VOLVO --------- FM 9/380 FM9 ---------
TRUCK VOLVO --------- FM 9/260 FM9 ---------
TRUCK VOLVO --------- FM 9/260 FM9 ---------
TRUCK VOLVO --------- FM 9/300 FM9 ---------
TRUCK VOLVO --------- FM 9/300 FM9 ---------
TRUCK VOLVO --------- FM 9/340 FM9 ---------
TRUCK VOLVO --------- FM 9/340 FM9 ---------
TRUCK VOLVO --------- FM 9/380 FM9 ---------
TRUCK VOLVO --------- FM 9/380 FM9 ---------

CROSS-REFERENCING

Manufacturer OEM Reference Main OEM
VOLVO 20382309 -
VOLVO 20716313 -
VOLVO 20452151 -
VOLVO 21225479 -
VOLVO 20755195 -
WABCO 9347141400

REPAIR KITS

  Cojali Reference Name Obtained by OEM
See more
