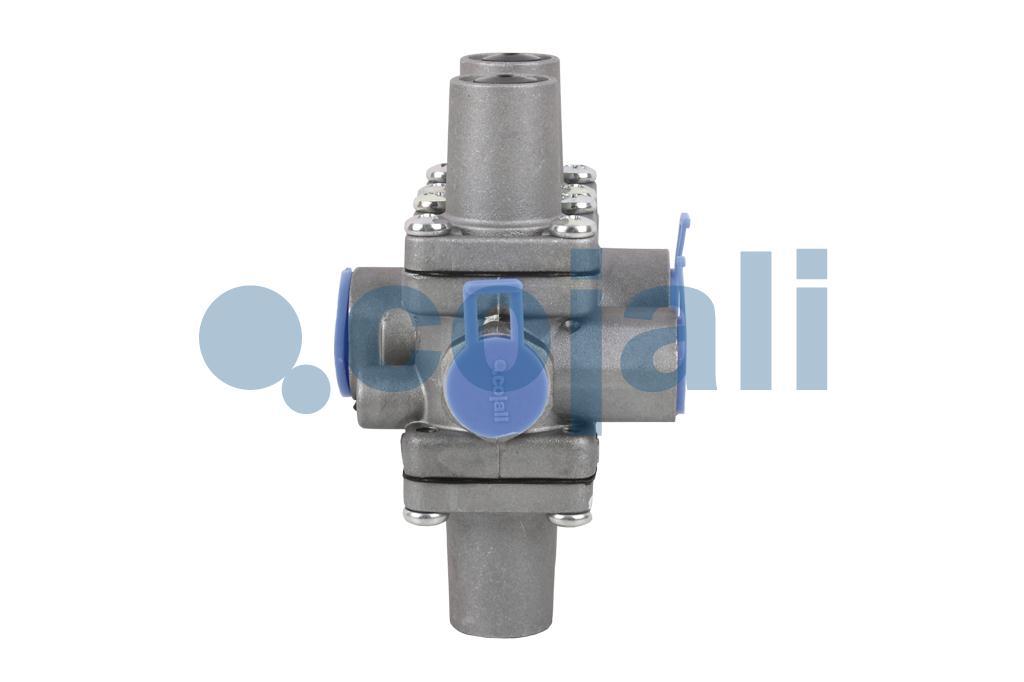

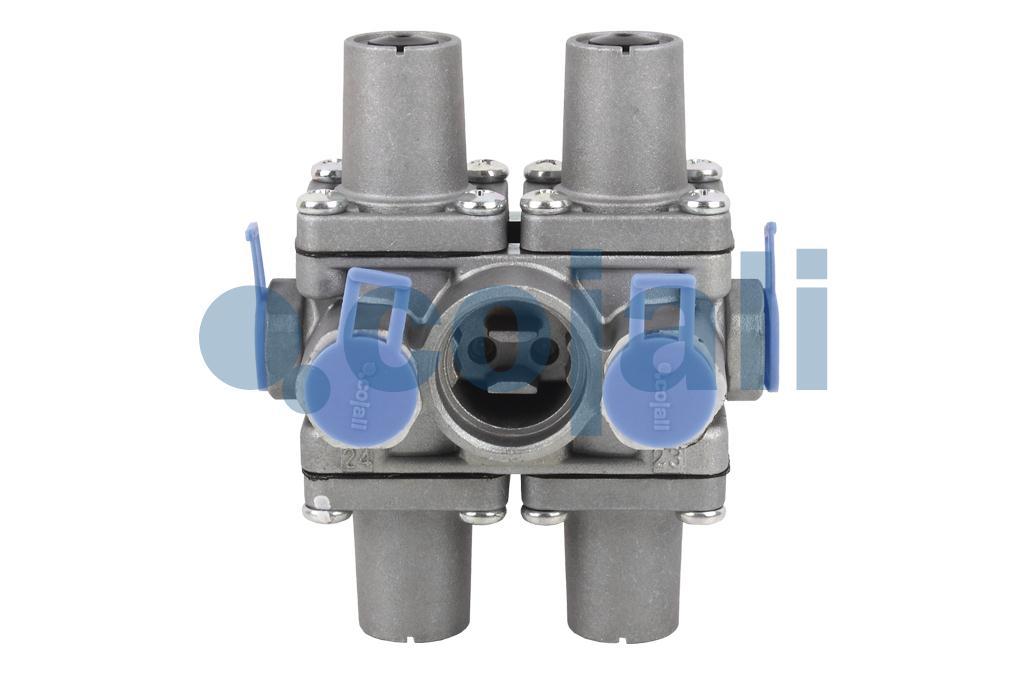

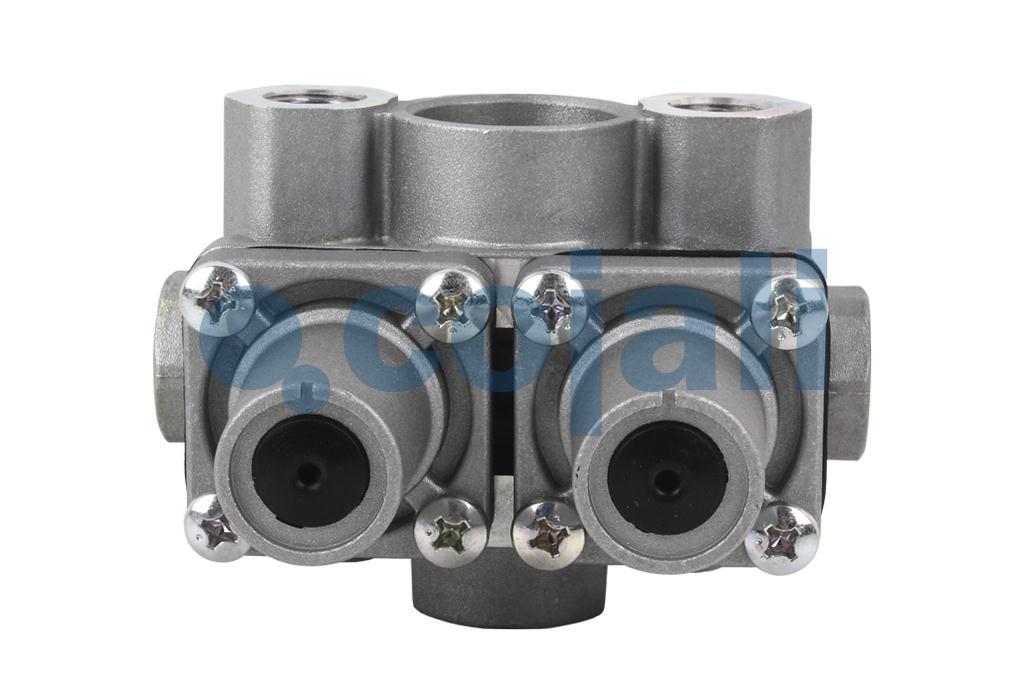

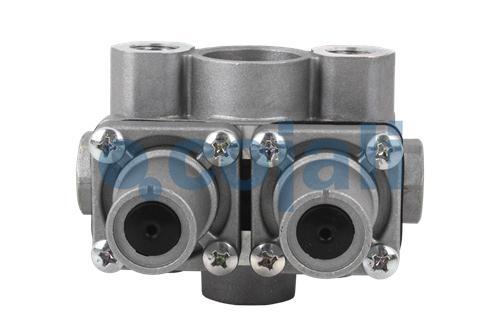

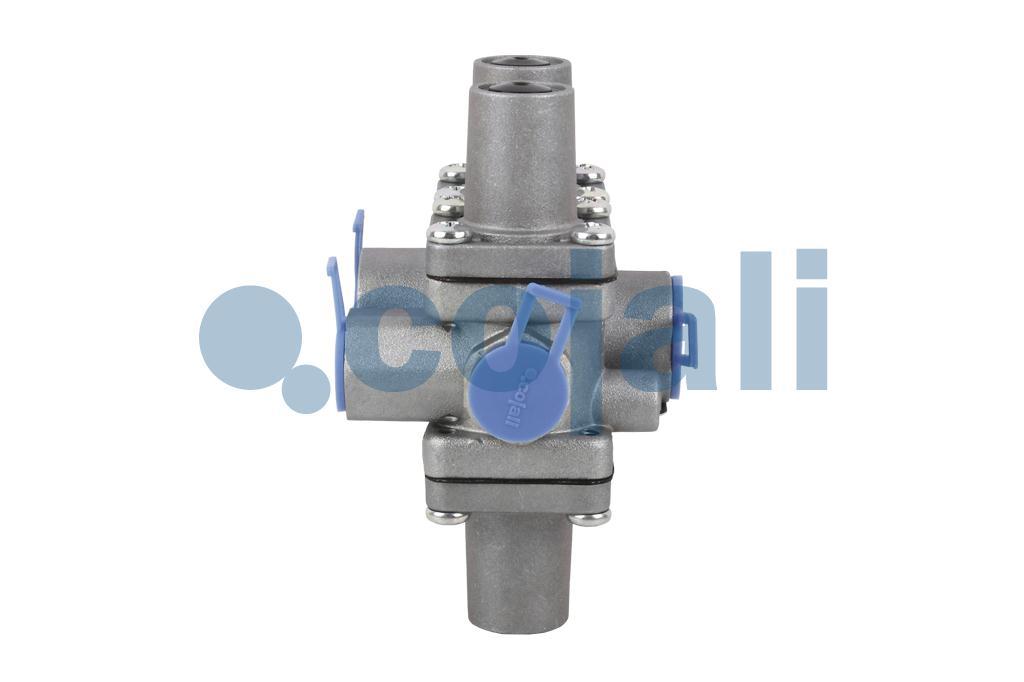

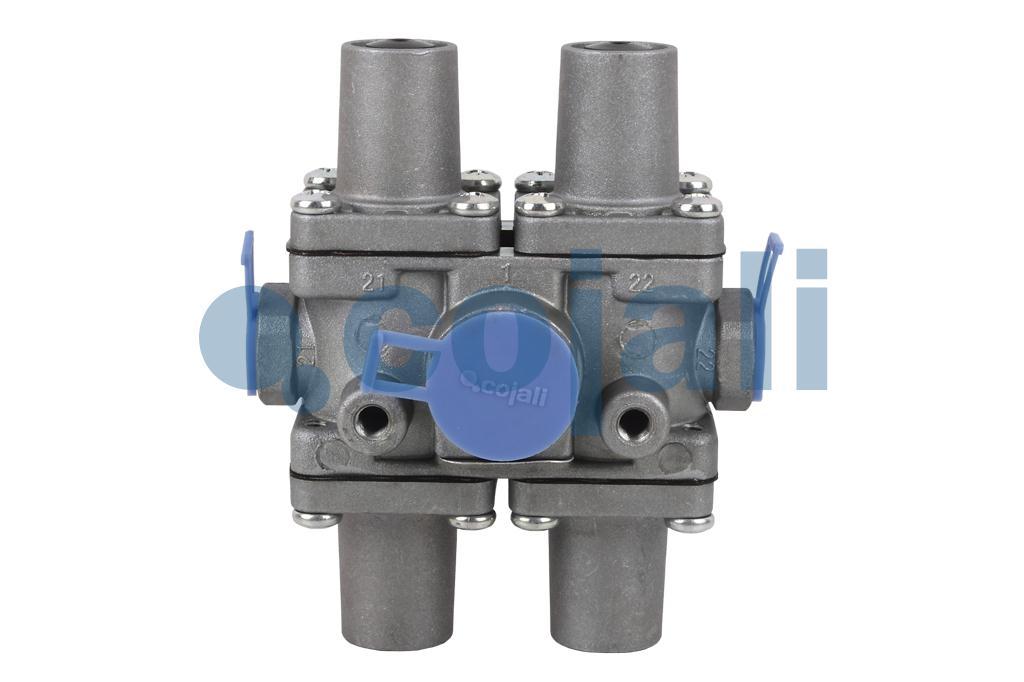

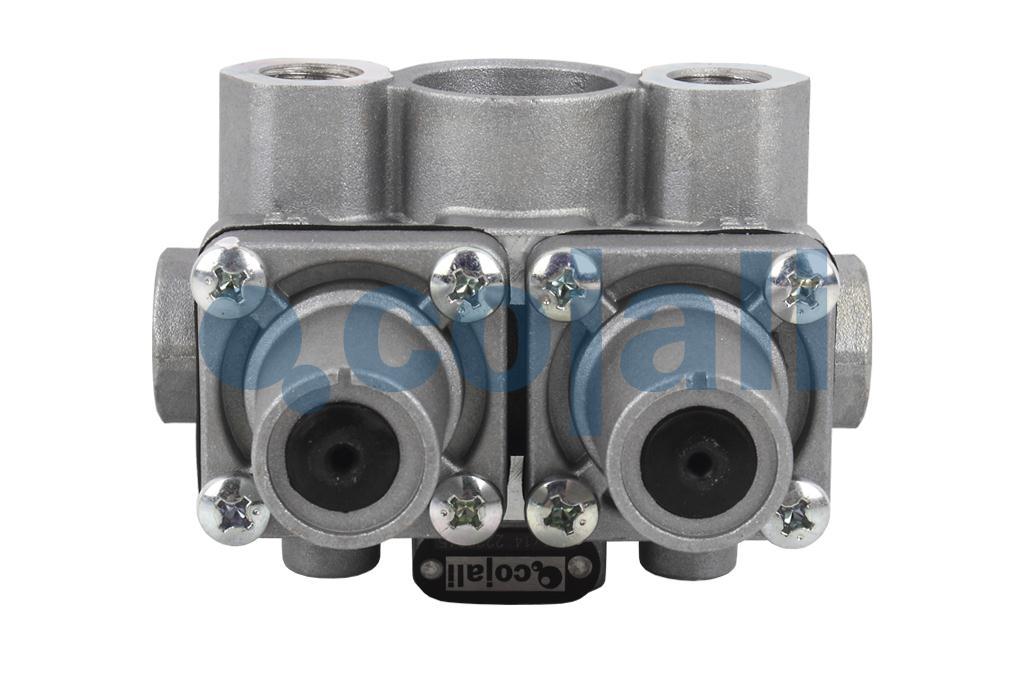

4-WAY PROTECTION VALVE

4-WAY PROTECTION VALVE, 2222249, 9347023870
4-WAY PROTECTION VALVE, 2222249, 9347023870
4-WAY PROTECTION VALVE, 2222249, 9347023870
4-WAY PROTECTION VALVE, 2222249, 9347023870
4-WAY PROTECTION VALVE, 2222249, 9347023870
4-WAY PROTECTION VALVE, 2222249, 9347023870
Home Online Catalogue Brake and suspension systems components 4-WAY PROTECTION VALVE

4-WAY PROTECTION VALVE

OEM:

9347023870 WABCO

Cojali reference:

2222249

DESCRIPTION

Valve that distributes air between the different pneumatic circuits and isolates affected sectors in case of leakage, improving the safety of the overall system.

TECHNICAL DATA

Technical sheet Technical sheet
Circuit 1 opening pressure 94.27 psi (by-pass)
Circuit 2 opening pressure 94.27 psi (by-pass)
Circuit 3 opening pressure 108.78 psi (by-pass)
Circuit 4 opening pressure 94.27 psi (by-pass)
Connection 1 M22x1,5
Connection 21 M16x1,5
Connection 22 M16x1,5
Connection 23 M16x1,5
Connection 24 M16x1,5
Safety device No
Weight 38.52 oz

APPLICATIONS

Vehicle type Brand Series Type Model Engine type
TRUCK DAF --------- --------- --------- ---------
TRUCK PACCAR --------- --------- --------- ---------
TRUCK SCANIA --------- --------- --------- ---------
TRUCK SCANIA --------- T 114 L/340 4 - series ---------
TRUCK SCANIA --------- T 114 L/380 4 - series ---------
TRUCK SCANIA --------- T 124 L/420 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/380 4 - series ---------
TRUCK SCANIA --------- T 124 L/470 4 - series ---------
TRUCK SCANIA --------- 94 D/260 4 - series ---------
TRUCK SCANIA --------- 94 D/300 4 - series ---------
TRUCK SCANIA --------- 94 D/220 4 - series ---------
TRUCK SCANIA --------- 94 D/260 4 - series ---------
TRUCK SCANIA --------- 94 D/310 4 - series ---------
TRUCK SCANIA --------- 94 D/220 4 - series ---------
TRUCK SCANIA --------- 94 D/310 4 - series ---------
TRUCK SCANIA --------- 94 G/260 4 - series ---------
TRUCK SCANIA --------- 94 G/310 4 - series ---------
TRUCK SCANIA --------- 94 G/310 4 - series ---------
TRUCK SCANIA --------- 94 L/310 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/380 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/380 4 - series ---------
TRUCK SCANIA --------- 94 G/310 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/380 4 - series ---------
TRUCK SCANIA --------- 124 C/420 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/380 4 - series ---------
TRUCK SCANIA --------- 124 C/420 4 - series ---------
TRUCK SCANIA --------- 124 C/420 4 - series ---------
TRUCK SCANIA --------- 124 C/470 4 - series ---------
TRUCK SCANIA --------- 124 C/420 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/380 4 - series ---------
TRUCK SCANIA --------- 114 L/340 4 - series ---------
TRUCK SCANIA --------- 114 L/380 4 - series ---------
TRUCK SCANIA --------- 114 L/380 4 - series ---------
TRUCK SCANIA --------- 114 L/380 4 - series ---------
TRUCK SCANIA --------- 114 L/380 4 - series ---------
TRUCK SCANIA --------- 124 L/420 4 - series ---------
TRUCK SCANIA --------- 124 L/420 4 - series ---------
TRUCK SCANIA --------- 124 L/420 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 L/340 4 - series ---------
TRUCK SCANIA --------- 94 D/230 4 - series ---------
TRUCK SCANIA --------- 94 D/230 4 - series ---------
TRUCK SCANIA --------- 94 D/230 4 - series ---------
TRUCK SCANIA --------- 124 L/470 4 - series ---------
TRUCK SCANIA --------- 124 L/470 4 - series ---------
TRUCK SCANIA --------- 124 L/470 4 - series ---------
TRUCK SCANIA --------- 124 L/470 4 - series ---------
TRUCK SCANIA --------- 114 L/340 4 - series ---------
TRUCK SCANIA --------- 114 L/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 94 L/310 4 - series ---------
TRUCK SCANIA --------- T 114 L/340 4 - series ---------
TRUCK SCANIA --------- T 114 L/380 4 - series ---------
TRUCK SCANIA --------- T 124 L/420 4 - series ---------
TRUCK SCANIA --------- T 114 L/340 4 - series ---------
TRUCK SCANIA --------- T 114 L/380 4 - series ---------
TRUCK SCANIA --------- T 124 L/420 4 - series ---------
TRUCK SCANIA --------- T 124 L/420 4 - series ---------
TRUCK SCANIA --------- T 124 C/420 4 - series ---------
TRUCK SCANIA --------- T 124 C/420 4 - series ---------
TRUCK SCANIA --------- T 94 C/260 4 - series ---------
TRUCK SCANIA --------- T 94 C/310 4 - series ---------
TRUCK SCANIA --------- T 114 C/340 4 - series ---------
TRUCK SCANIA --------- T 114 C/380 4 - series ---------
TRUCK SCANIA --------- T 94 C/260 4 - series ---------
TRUCK SCANIA --------- T 94 C/310 4 - series ---------
TRUCK SCANIA --------- T 114 C/340 4 - series ---------
TRUCK SCANIA --------- T 114 C/380 4 - series ---------
TRUCK SCANIA --------- T 124 C/420 4 - series ---------
TRUCK SCANIA --------- T 94 C/260 4 - series ---------
TRUCK SCANIA --------- T 94 C/310 4 - series ---------
TRUCK SCANIA --------- T 114 C/340 4 - series ---------
TRUCK SCANIA --------- T 114 C/380 4 - series ---------
TRUCK SCANIA --------- T 124 C/420 4 - series ---------
TRUCK SCANIA --------- T 94 G/220 4 - series ---------
TRUCK SCANIA --------- T 94 G/230 4 - series ---------
TRUCK SCANIA --------- T 94 G/260 4 - series ---------
TRUCK SCANIA --------- T 94 G/310 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/380 4 - series ---------
TRUCK SCANIA --------- T 124 G/420 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/380 4 - series ---------
TRUCK SCANIA --------- T 124 G/420 4 - series ---------
TRUCK SCANIA --------- T 114 G/380 4 - series ---------
TRUCK SCANIA --------- T 124 G/420 4 - series ---------
TRUCK SCANIA --------- T 94 G/220 4 - series ---------
TRUCK SCANIA --------- T 94 G/230 4 - series ---------
TRUCK SCANIA --------- T 94 G/260 4 - series ---------
TRUCK SCANIA --------- T 94 G/310 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/380 4 - series ---------
TRUCK SCANIA --------- T 124 G/420 4 - series ---------
TRUCK SCANIA --------- T 94 G/260 4 - series ---------
TRUCK SCANIA --------- T 94 G/220 4 - series ---------
TRUCK SCANIA --------- T 94 G/230 4 - series ---------
TRUCK SCANIA --------- T 94 G/310 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/380 4 - series ---------
TRUCK SCANIA --------- T 94 G/260 4 - series ---------
TRUCK SCANIA --------- T 94 G/310 4 - series ---------
TRUCK SCANIA --------- T 114 G/340 4 - series ---------
TRUCK SCANIA --------- T 114 G/380 4 - series ---------
TRUCK SCANIA --------- T 124 G/420 4 - series ---------
TRUCK SCANIA --------- T 124 L/470 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 94 D/300 4 - series ---------
TRUCK SCANIA --------- 94 D/300 4 - series ---------
TRUCK SCANIA --------- 94 C/300 4 - series ---------
TRUCK SCANIA --------- 94 D/230 4 - series ---------
TRUCK SCANIA --------- 94 D/260 4 - series ---------
TRUCK SCANIA --------- 94 D/300 4 - series ---------
TRUCK SCANIA --------- 94 D/230 4 - series ---------
TRUCK SCANIA --------- 94 D/260 4 - series ---------
TRUCK SCANIA --------- 94 D/300 4 - series ---------
TRUCK SCANIA --------- 114 L/340 4 - series ---------
TRUCK SCANIA --------- 114 L/380 4 - series ---------
TRUCK SCANIA --------- 124 L/420 4 - series ---------
TRUCK SCANIA --------- 124 G/420 4 - series ---------
TRUCK SCANIA --------- 124 G/470 4 - series ---------
TRUCK SCANIA --------- 124 L/470 4 - series ---------
TRUCK SCANIA --------- 124 L/420 4 - series ---------
TRUCK SCANIA --------- 124 L/470 4 - series ---------
TRUCK SCANIA --------- 114 L/340 4 - series ---------
TRUCK SCANIA --------- 114 L/380 4 - series ---------
TRUCK SCANIA --------- 114 C/330 4 - series ---------
TRUCK SCANIA --------- 94 D/270 4 - series ---------
TRUCK SCANIA --------- 94 D/220 4 - series ---------
TRUCK SCANIA --------- 94 D/220 4 - series ---------
TRUCK SCANIA --------- 94 D/220 4 - series ---------
TRUCK SCANIA --------- 94 L/310 4 - series ---------
TRUCK SCANIA --------- 94 L/310 4 - series ---------
TRUCK SCANIA --------- 94 L/310 4 - series ---------
TRUCK SCANIA --------- 94 D/260 4 - series ---------
TRUCK SCANIA --------- 94 D/260 4 - series ---------
TRUCK SCANIA --------- 94 D/260 4 - series ---------
TRUCK SCANIA --------- 94 C/260 4 - series ---------
TRUCK SCANIA --------- 94 C/260 4 - series ---------
TRUCK SCANIA --------- 94 C/260 4 - series ---------
TRUCK SCANIA --------- 94 C/260 4 - series ---------
TRUCK SCANIA --------- 94 G/220 4 - series ---------
TRUCK SCANIA --------- 94 G/220 4 - series ---------
TRUCK SCANIA --------- 94 G/220 4 - series ---------
TRUCK SCANIA --------- 94 D/310 4 - series ---------
TRUCK SCANIA --------- 94 D/310 4 - series ---------
TRUCK SCANIA --------- 94 D/310 4 - series ---------
TRUCK SCANIA --------- 94 G/260 4 - series ---------
TRUCK SCANIA --------- 94 G/260 4 - series ---------
TRUCK SCANIA --------- 94 G/260 4 - series ---------
TRUCK SCANIA --------- 94 G/310 4 - series ---------
TRUCK SCANIA --------- 94 G/310 4 - series ---------
TRUCK SCANIA --------- 94 C/310 4 - series ---------
TRUCK SCANIA --------- 94 C/310 4 - series ---------
TRUCK SCANIA --------- 94 C/310 4 - series ---------
TRUCK SCANIA --------- 94 C/310 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/340 4 - series ---------
TRUCK SCANIA --------- 114 C/380 4 - series ---------
TRUCK SCANIA --------- 114 C/380 4 - series ---------
TRUCK SCANIA --------- 114 C/380 4 - series ---------
TRUCK SCANIA --------- 114 C/380 4 - series ---------
TRUCK SCANIA --------- 114 C/380 4 - series ---------
TRUCK SCANIA --------- 114 C/380 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/340 4 - series ---------
TRUCK SCANIA --------- 114 G/380 4 - series ---------
TRUCK SCANIA --------- 114 G/380 4 - series ---------
TRUCK SCANIA --------- 114 G/380 4 - series ---------
TRUCK SCANIA --------- 114 G/380 4 - series ---------
TRUCK SCANIA --------- 114 G/380 4 - series ---------
TRUCK SCANIA --------- 114 G/380 4 - series ---------
TRUCK SCANIA --------- 114 G/380 4 - series ---------
TRUCK SCANIA --------- 114 L/340 4 - series ---------
TRUCK SCANIA --------- 114 L/340 4 - series ---------
TRUCK SCANIA --------- 114 L/340 4 - series ---------
TRUCK SCANIA --------- 114 L/340 4 - series ---------
TRUCK SCANIA --------- 114 L/380 4 - series ---------

CROSS-REFERENCING

Manufacturer OEM Reference Main OEM
DAF 1505399 -
SCANIA 1356635 -
SCANIA 1935508 -
WABCO 9347023870

REPAIR KITS

  Cojali Reference Name Obtained by OEM
See more
loader

COJALI S.L.

COJALI USA Inc.
2070 NW 79th Avenue
Doral, Florida 33122, USA
Tel: (+1) 305 960 7651
Call for free: (+1) 800 975 1865

COJALI

facebook X instagram youtube linkedin
Original part numbers are used so as to identify the products we sell, in the sole purpose of customers recognition of the items sold.
This page uses our own and third-party cookies to improve the navigability and accessibility of our website and to optimise the user experience. You can click on "Settings" to obtain more information about them and to set or refuse their use.
Cojali
Copyright © 2026 Cojali S.L. All rights reserved
UE
Anchor Bottom
