OEM:
9325001020 WABCOCojali reference:

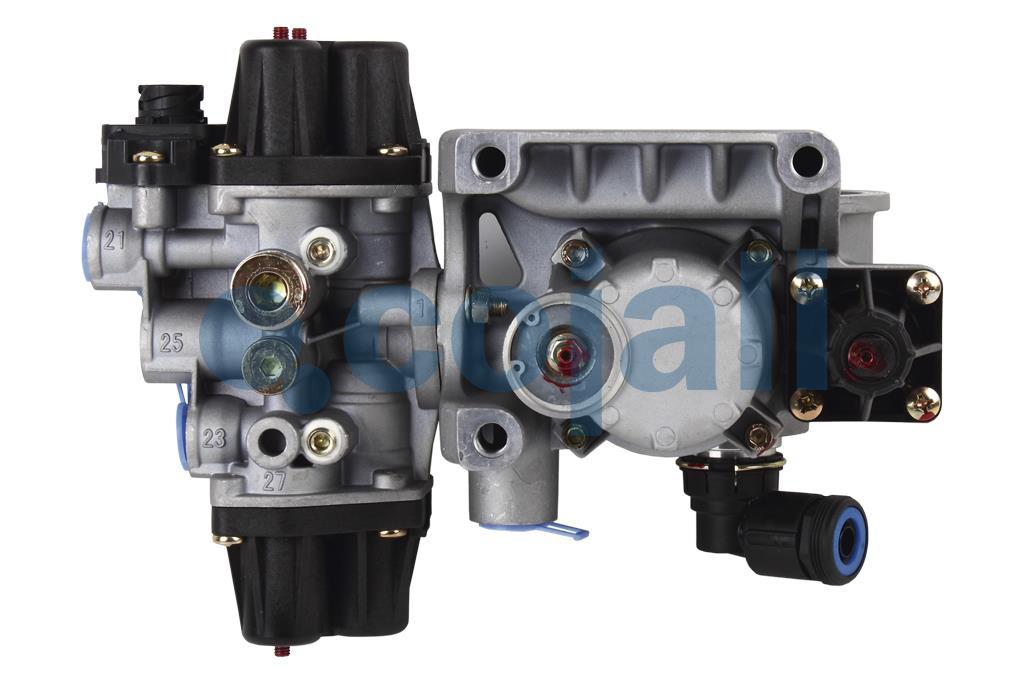

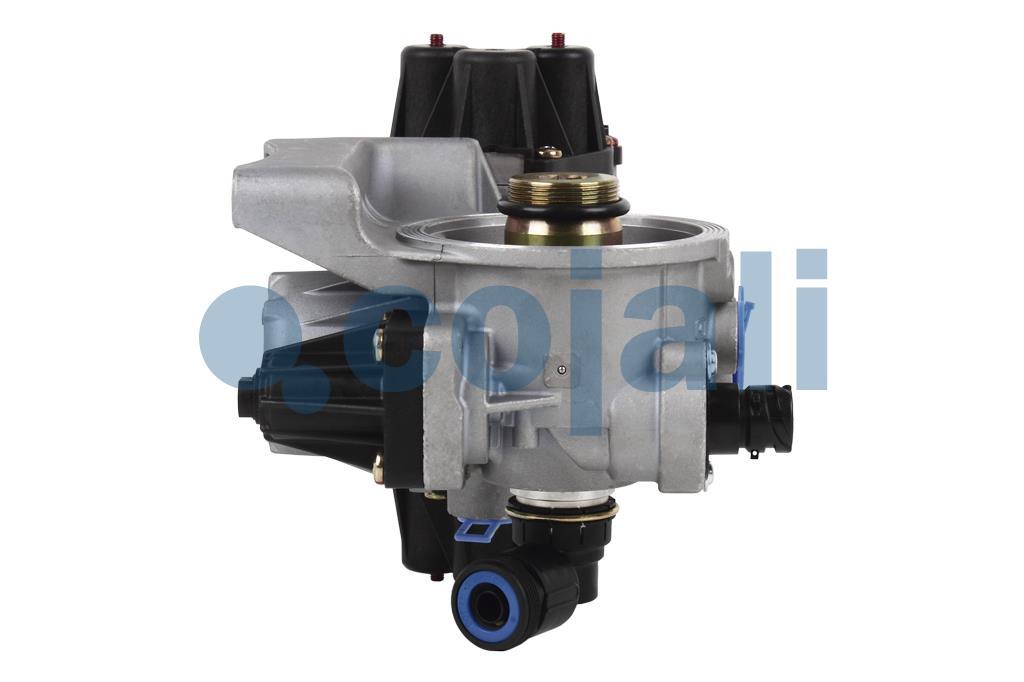

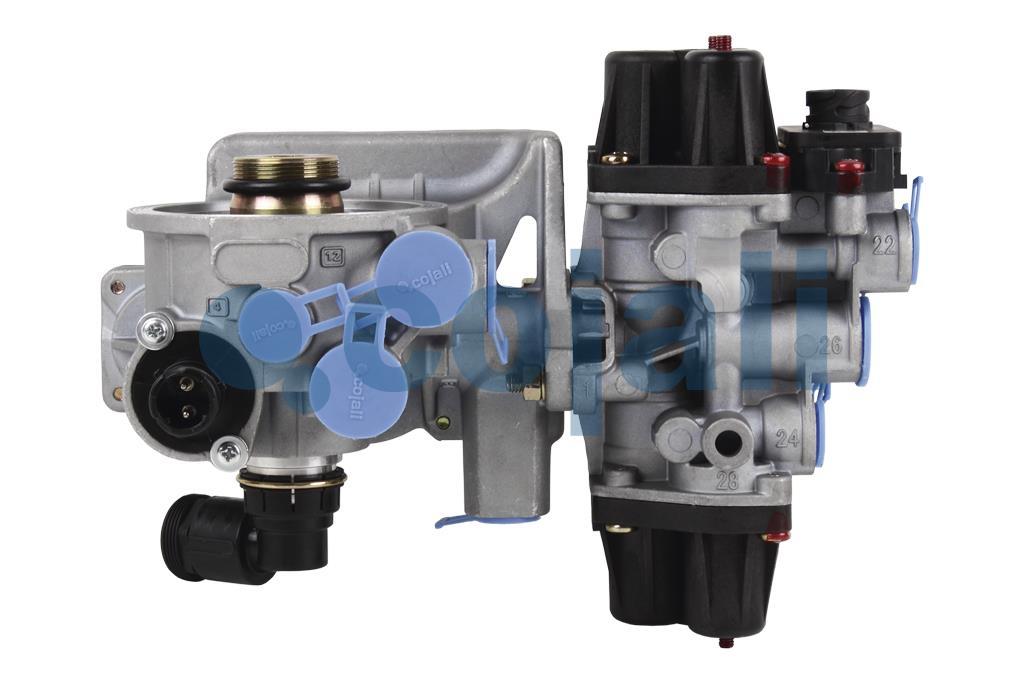

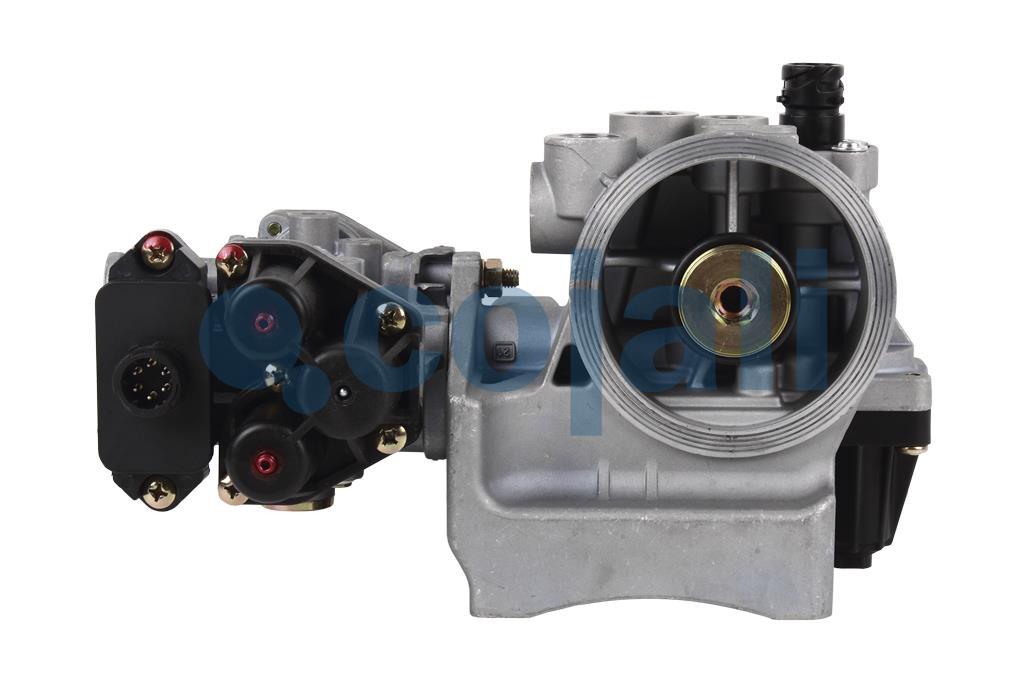

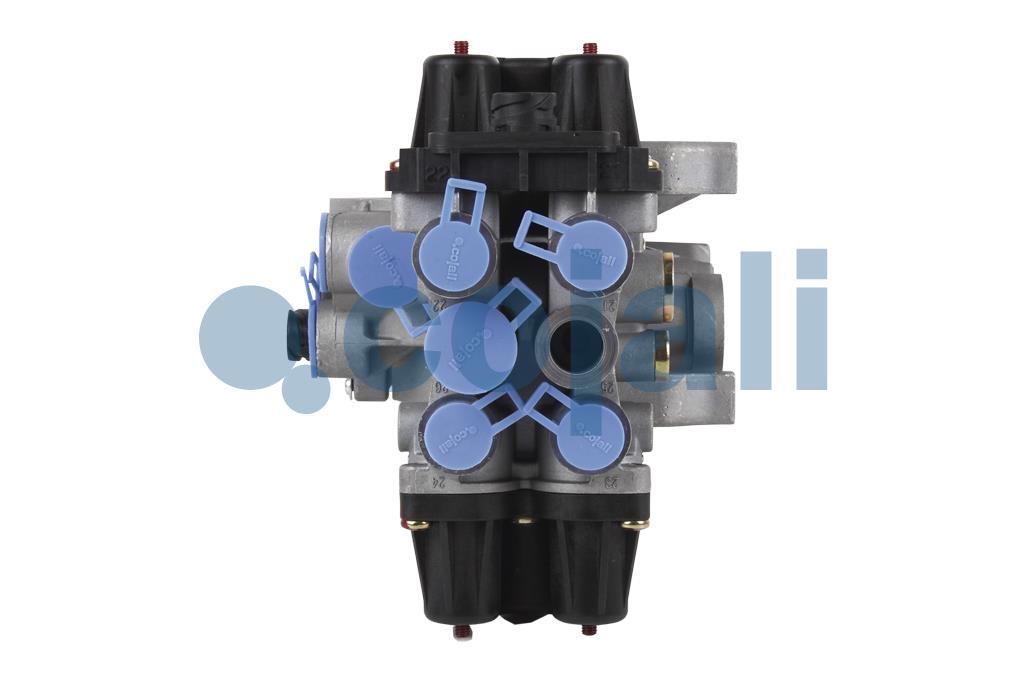

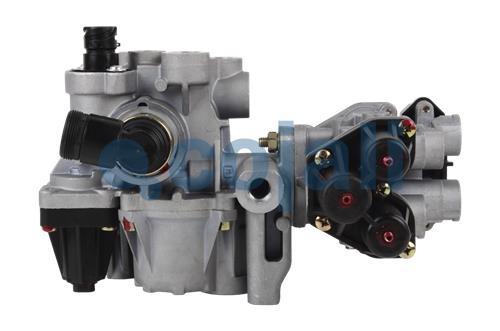

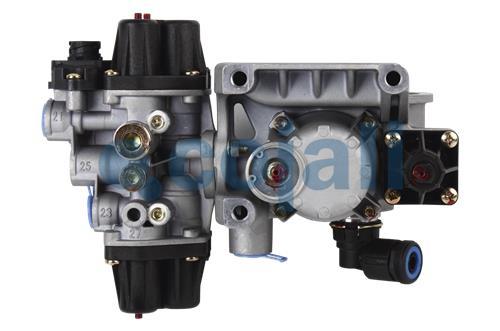

2210637Component responsible for compressed air management (drying and filtering) and its distribution to the several tanks of the vehicle, guaranteeing a clean and constant supply.
| Cartridge connection | M39x1,5 |
| Circuit 1 opening pressure | 108.78 psi |
| Circuit 2 opening pressure | 108.78 psi |
| Circuit 3 opening pressure | 108.78 psi |
| Circuit limitation pressure 3 | 120.38 psi |
| Circuit limitation pressure 4 | 120.38 psi |
| Cojali reference (circuit protection) | 2222309 |
| Cojali reference (dryer) | 2210222 |
| Connection 1 (circuit protection) | M22x1,5 VOSS |
| Connection 1 (dryer) | M22x1,5 |
| Connection 12 (dryer) | M22x1,5 |
| Connection 21 (circuit protection) | M16x1,5 |
| Connection 21 (dryer) | M22x1,5 |
| Connection 22 (circuit protection) | M16x1,5 |
| Connection 23 (circuit protection) | M16x1,5 |
| Connection 24 (circuit protection) | M16x1,5 |
| Connection 25 (dryer) | M16x1,5 |
| Connection 26 (circuit protection) | M22x1,5 |
| Connection 26 (dryer) | M22x1,5 |
| Connection 4 (dryer) | M16x1,5 |
| Cut-out pressure | 152.29 psi |
| Electrical connection (pressure sensor) | Bayoneta DIN 72585 A1-6 |
| Heater (type) | Bayoneta DIN 72585 A1-2 |
| OEM reference (circuit protection) | 934 705 022 0 |
| OEM reference (dryer) | 432 416 002 0 |
| Safety device | Sí |
| Silent | No |
| Voltage (heater) | 24 V |
| Voltage (pressure sensor) | 5V |
| Weight | 164.99 oz |
| Vehicle type | Brand | Series | Type | Model | Engine type |
|---|---|---|---|---|---|
| TRUCK | IVECO | --------- | --------- | --------- | --------- |
| Manufacturer | OEM Reference | Main OEM |
|---|---|---|
| IVECO | 5801414923 | - |
| IVECO | 41285080 | - |
| IVECO | 41285077 | - |
| IVECO | IVECO41285077 | - |
| IVECO | 41285078 | - |
| IVECO | 41285079 | - |
| IVECO | 41285081 | - |
| IVECO | 41285082 | - |
| IVECO | 5801335173 | - |
| IVECO | 5801414915 | - |
| IVECO | 5801414916 | - |
| IVECO | 5801414922 | - |
| IVECO | 5801414924 | - |
| IVECO | 41211262 | - |
| IVECO | 41211392 | - |
| WABCO | 9325001020 |
| Cojali Reference | Name | OEM |
|---|
| Cojali Reference | Name | Obtained by | OEM |
|---|
