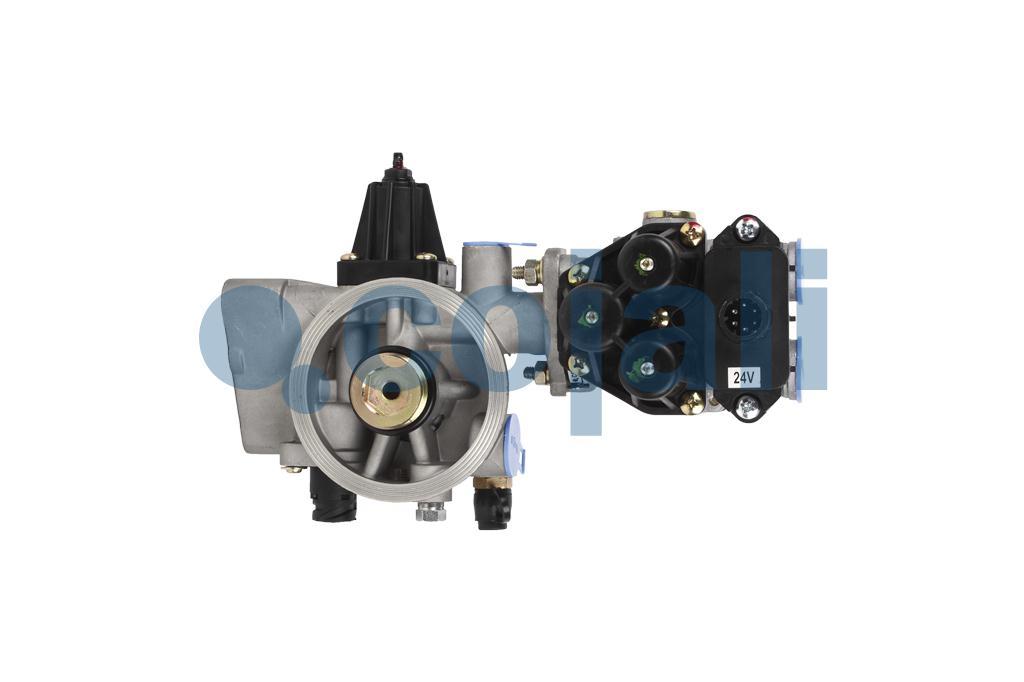

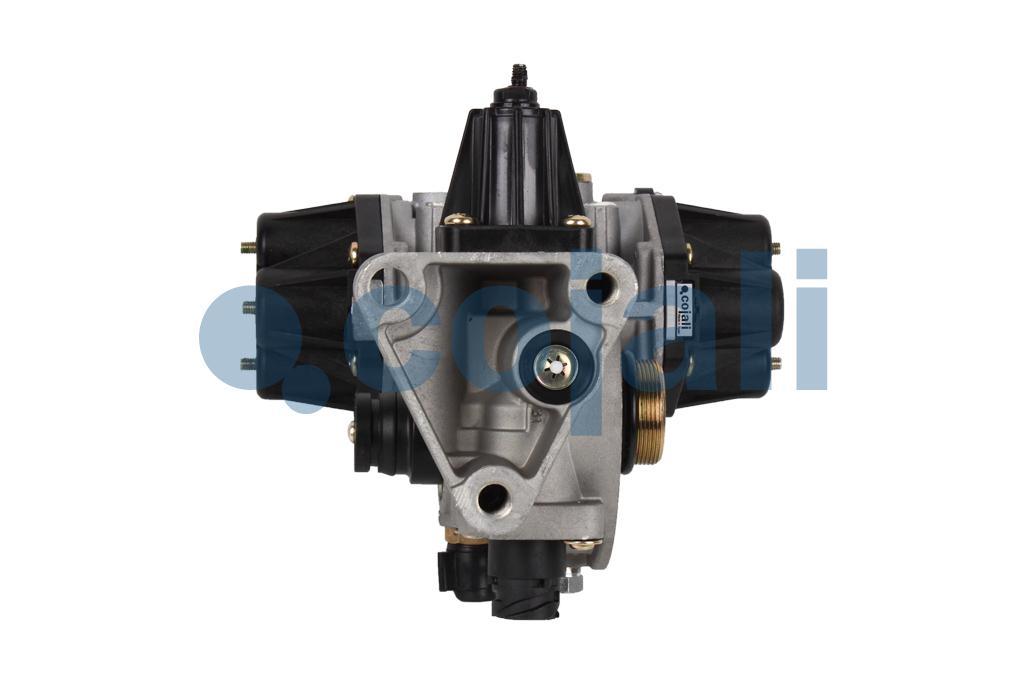

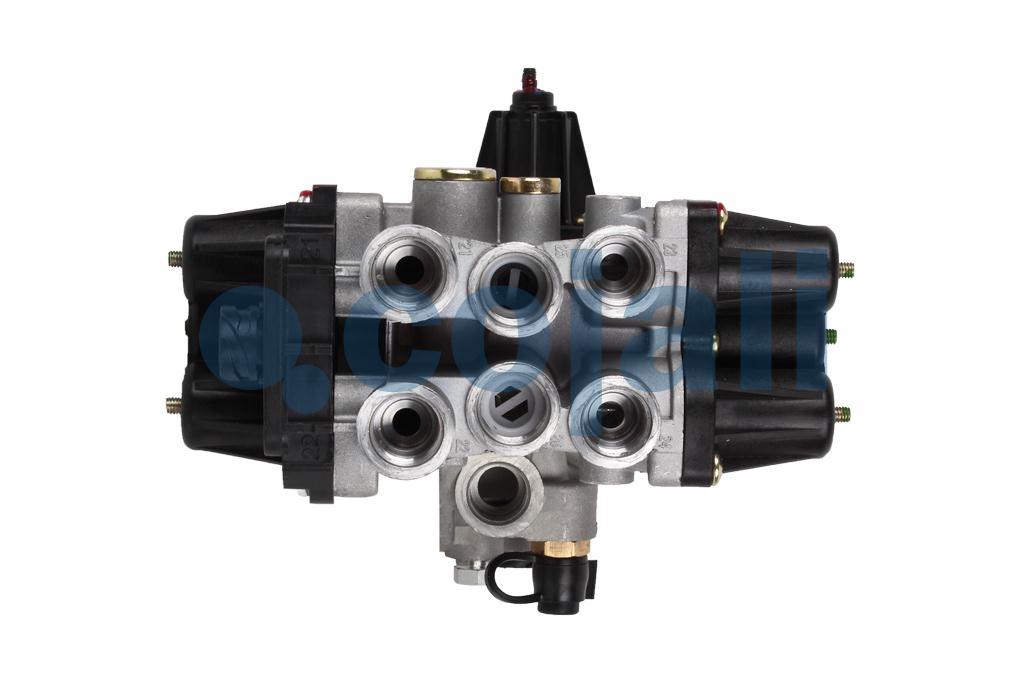

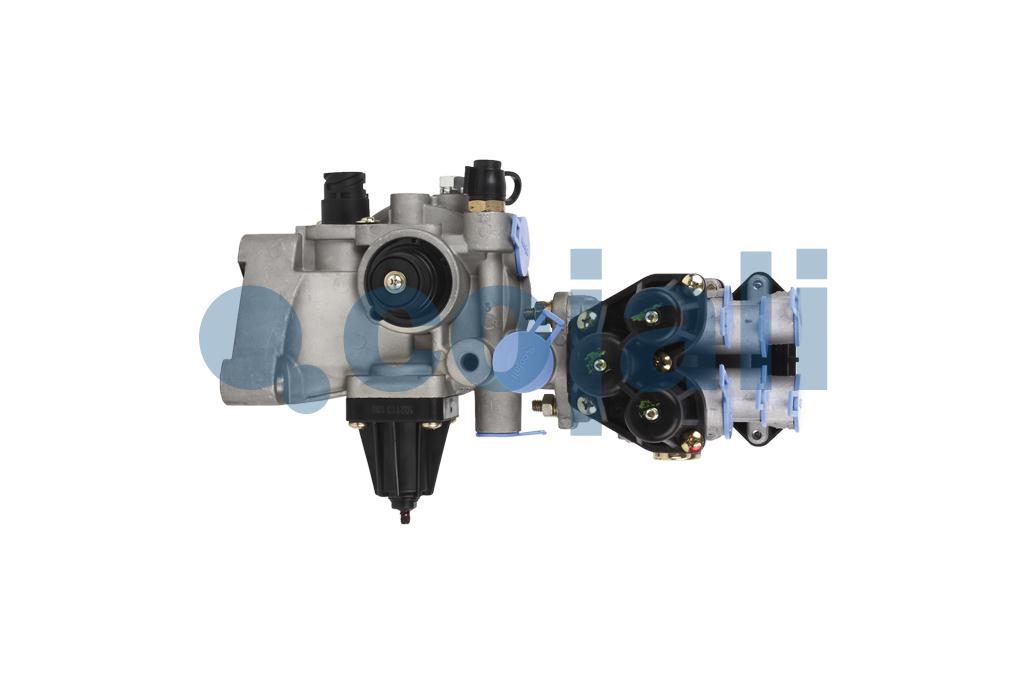

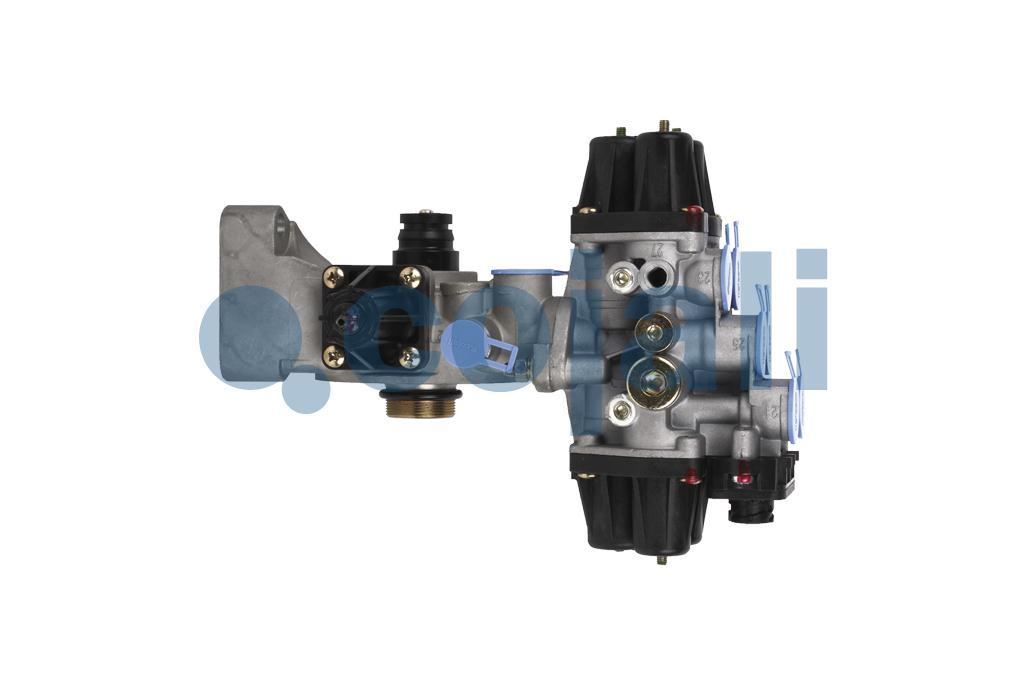

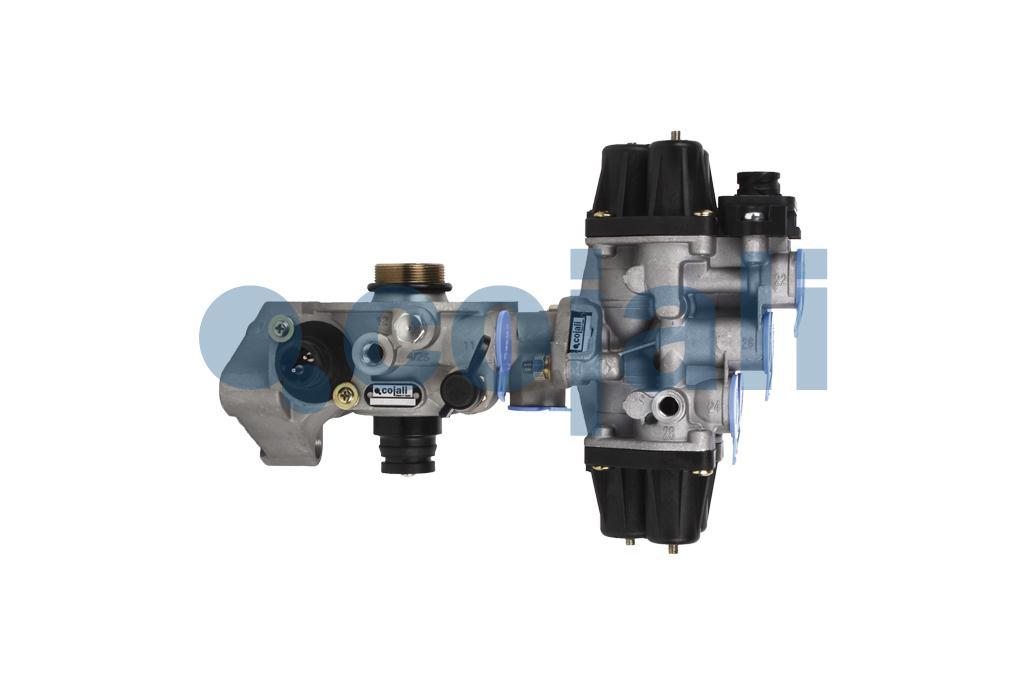

AIR PROCESSING UNIT (APU)

AIR PROCESSING UNIT (APU)

OEM:

9325000050 WABCO

Cojali reference:

2210602

TECHNICAL DATA

Cartridge metric M39x1,5
Circuit 1 opening pressure 9,0 bar (by-pass)
Circuit 3 opening pressure 7,5 bar
Circuit 4 opening pressure 7,5 bar
Circuit limitation pressure 1 10,0 bar
Circuit limitation pressure 2 10,0 bar
Circuit limitation pressure 3 8,5 bar
Circuit limitation pressure 4 8,5 bar
Connection 1 of the circuit protection M22x1,5 VOSS
Connection 11 of the dryer M22x1,5
Connection 12 of the dryer M12x1,5
Connection 21 of the circuit protection M22x1,5 VOSS
Connection 21 of the dryer M22x1,5
Connection 22 of the circuit protection M22x1,5 VOSS
Connection 22 of the dryer M16x1,5
Connection 23 of the circuit protection M22x1,5 VOSS
Connection 23 of the dryer Inflador
Connection 24 of the circuit protection M22x1,5 VOSS
Connection 24 of the dryer M22x1,5
Connection 25 of the circuit protection M22x1,5 VOSS
Connection 26 of the circuit protection M22x1,5 VOSS
Connection 27 of the circuit protection M12x1,5
Connection 28 of the circuit protection M12x1,5
Connection 4/25 of the dryer M10x1 (Taponada)
Cut-out pressure 12,0 bar
Heater type Bayoneta DIN 72585 A1-2
Heater voltage 24 V
OEM Reference of the circuit protection 934 705 003 0
OEM Reference of the dryer 932 400 002 0
Presión apertura del circuito 2 9,0 bar (by-pass)
Pressure sensor connector Bayoneta DIN 72585 A1-6
Pressure sensor voltage 24V
Reference of the circuit protection 2222302
Reference of the dryer 2210501
Safety device
SILENCER No
Weight 3785.00 g

APPLICATIONS

Vehicle type Brand Series Type Model Engine type
TRUCK MERCEDES BENZ --------- --------- --------- ---------
BUS EVOBUS --------- --------- --------- ---------
