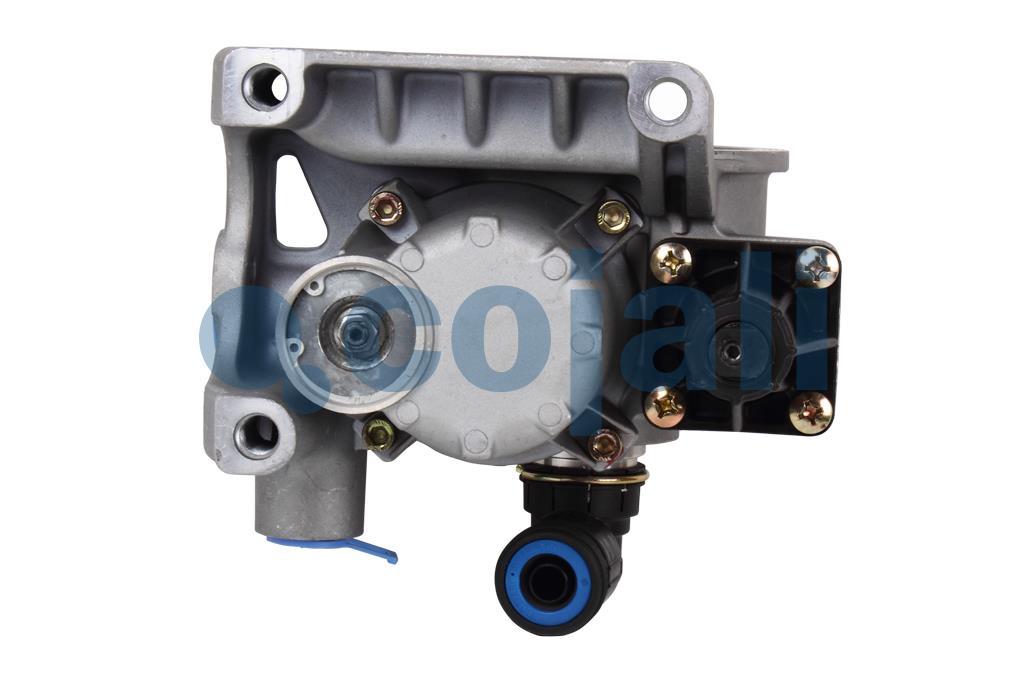

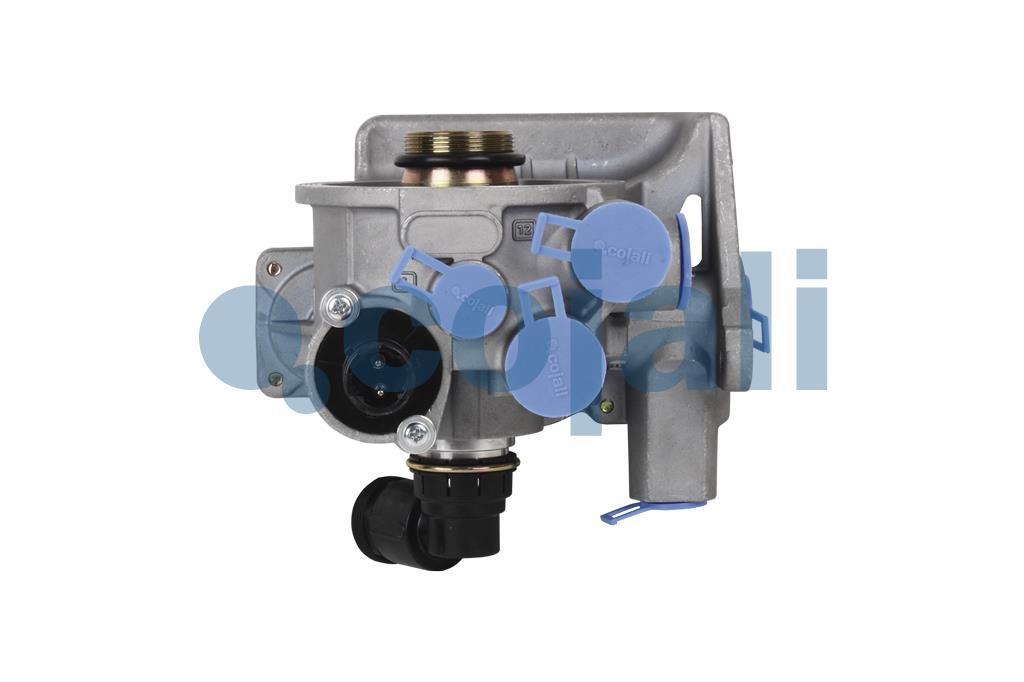

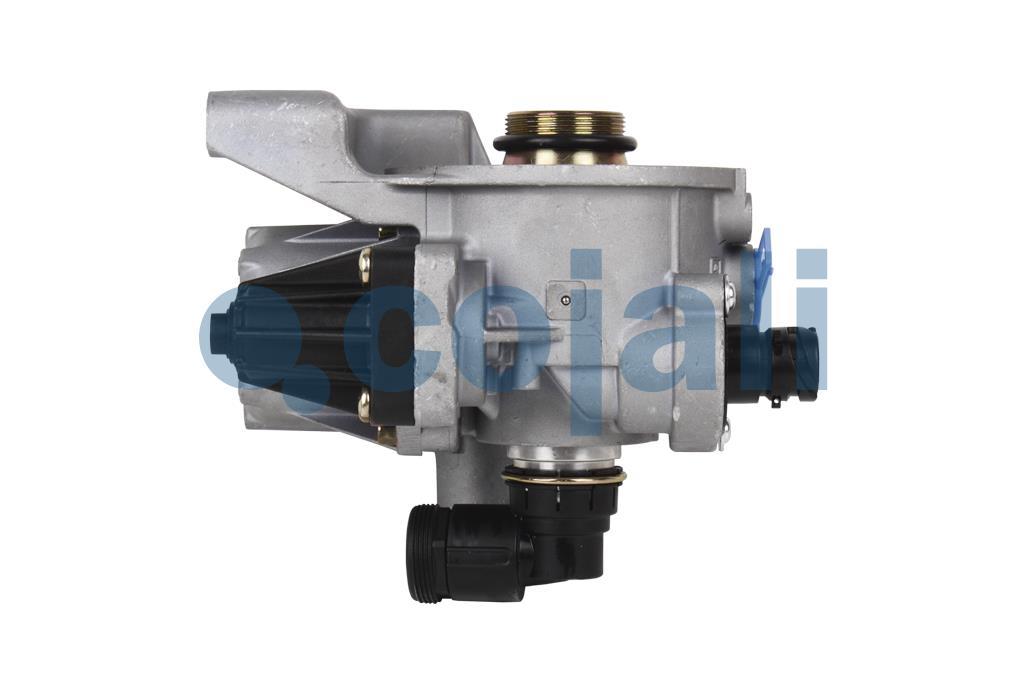

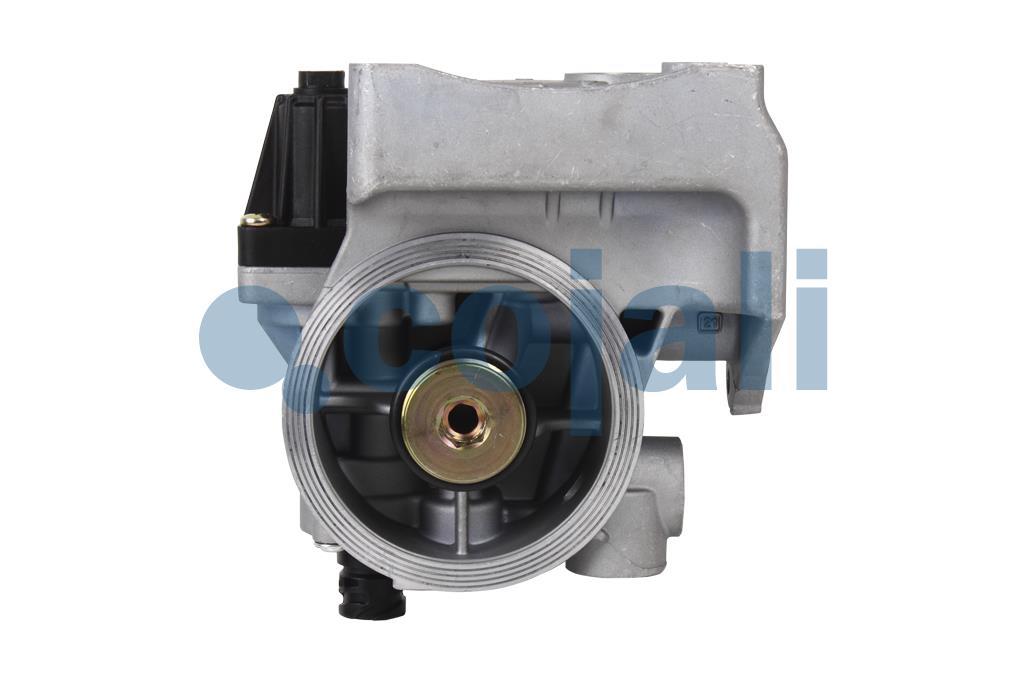

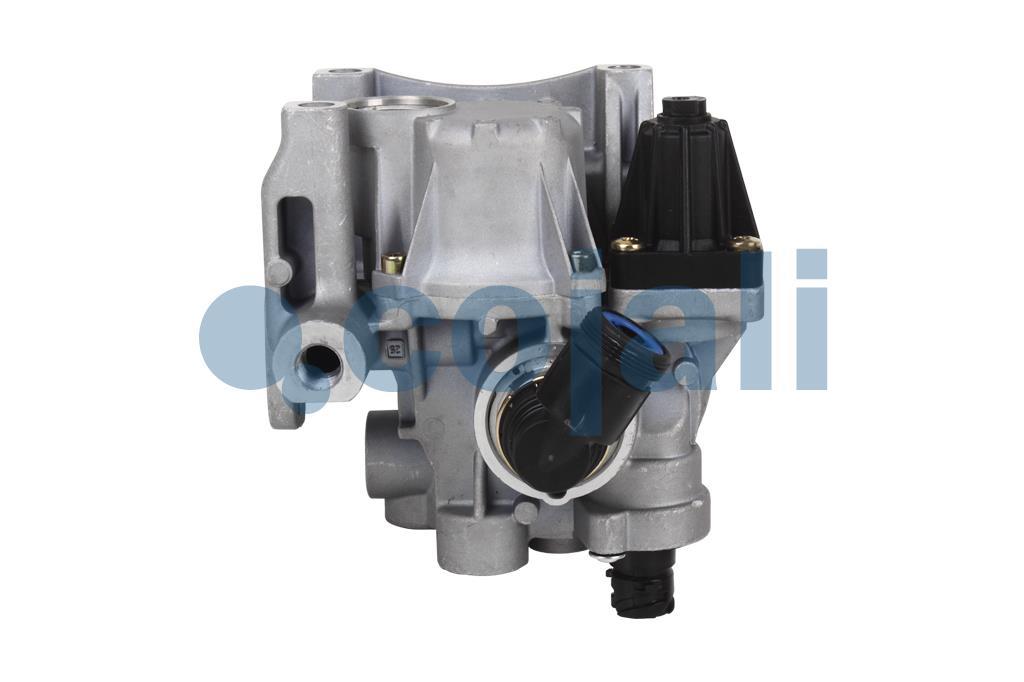

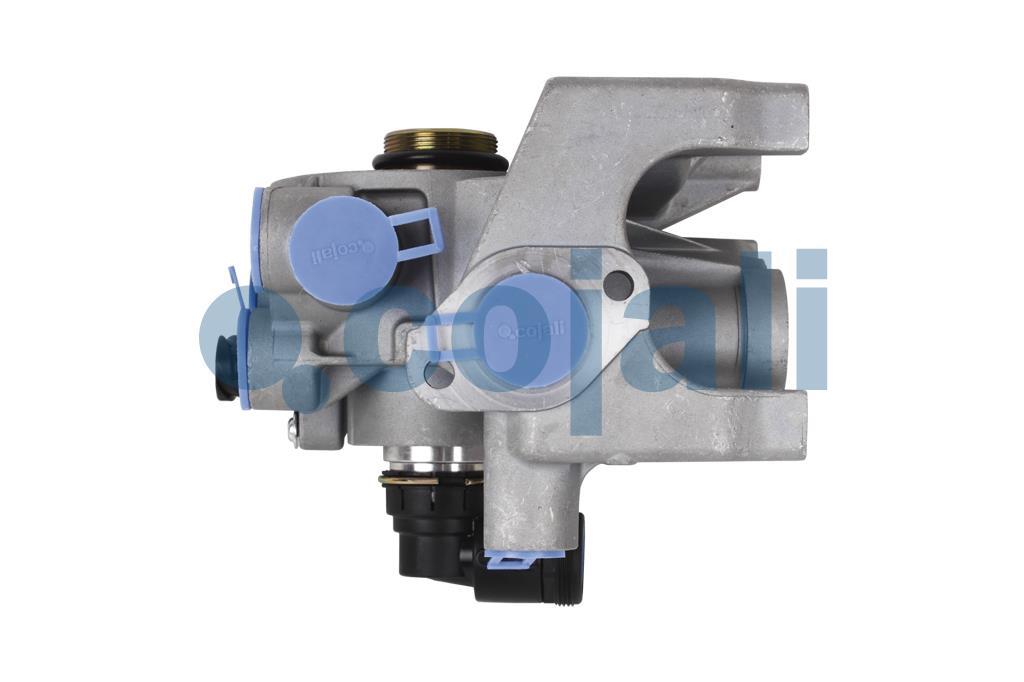

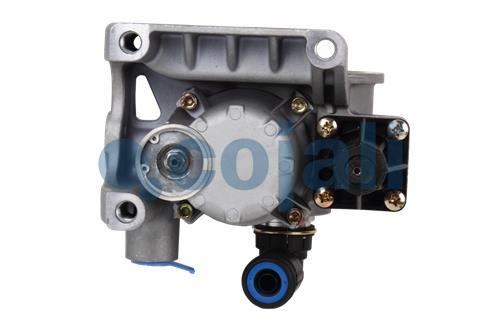

AIR DRYER

Name: AIR DRYER
Brand: Cojali
SKU: 4324160020
Rating: 4.22 (11 reviews)

AIR DRYER

OEM:

4324160020 WABCO

Cojali reference:

2210222 QUANTITY

Technical sheet

TECHNICAL DATA

Technical sheet

Conexión cartucho	M39x1,5
Conexión eléctrica calentador	Bayoneta DIN 72585-2.1-PLUG (Código A)
Connection 1	M22x1,5
Connection 12	M22x1,5
Connection 21	M22x1,5
Connection 25	M16x1,5
Connection 26	M22x1,5
Connection 4	M16x1,5
Cut-out pressure	152.29 psi
SILENCER	No
Voltage	24 V
Weight	6.43 lb

CROSS-REFERENCING

Manufacturer	OEM Reference	Main OEM
WABCO	4324160020

RELATED PRODUCTS

	Cojali Reference	Name	OEM
